Description
For long-distance or outdoor use, it is recommended to buy a green laser
>>Parameter:
Model: F113-XG/F113-XR
IP Rating:IP55
Laser class: Class 2 (IEC/EN 60825-1:2014)，<1mW
Laser Wavelength: Green 510-520nm；Red 635-650nm

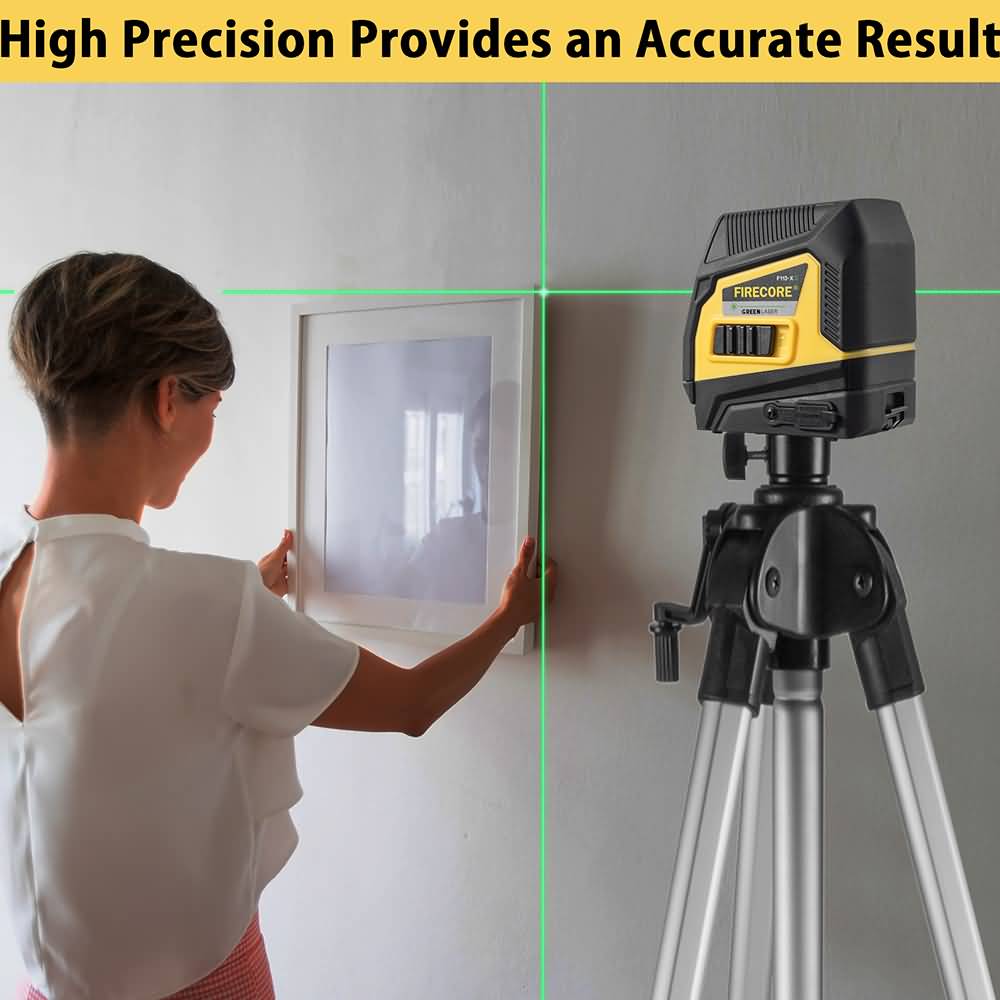

Accuracy: ±3mm/10m
Self-leveling Range: 3°
Mount Size: 1/4''
Leveling Type: Gravity pendulum
Cross line: Vertical angle 110° / Horizontal angle:120°
F113-XG Working time (with all laser beams on): About 5 hours with lithium batteries, about 7 hours with AA batteries
F113-XR Working time (with all laser beams on): About 8 hours with lithium batteries, about 20 hours with AA batteries
Working Range: About 20m（F113-XG）About 18m（F113-XR）
Power Supply: 2*1.2V 1000mAh Ni-MH Battery (included) / 2*1.5V AA alkaline batteries (Not included)

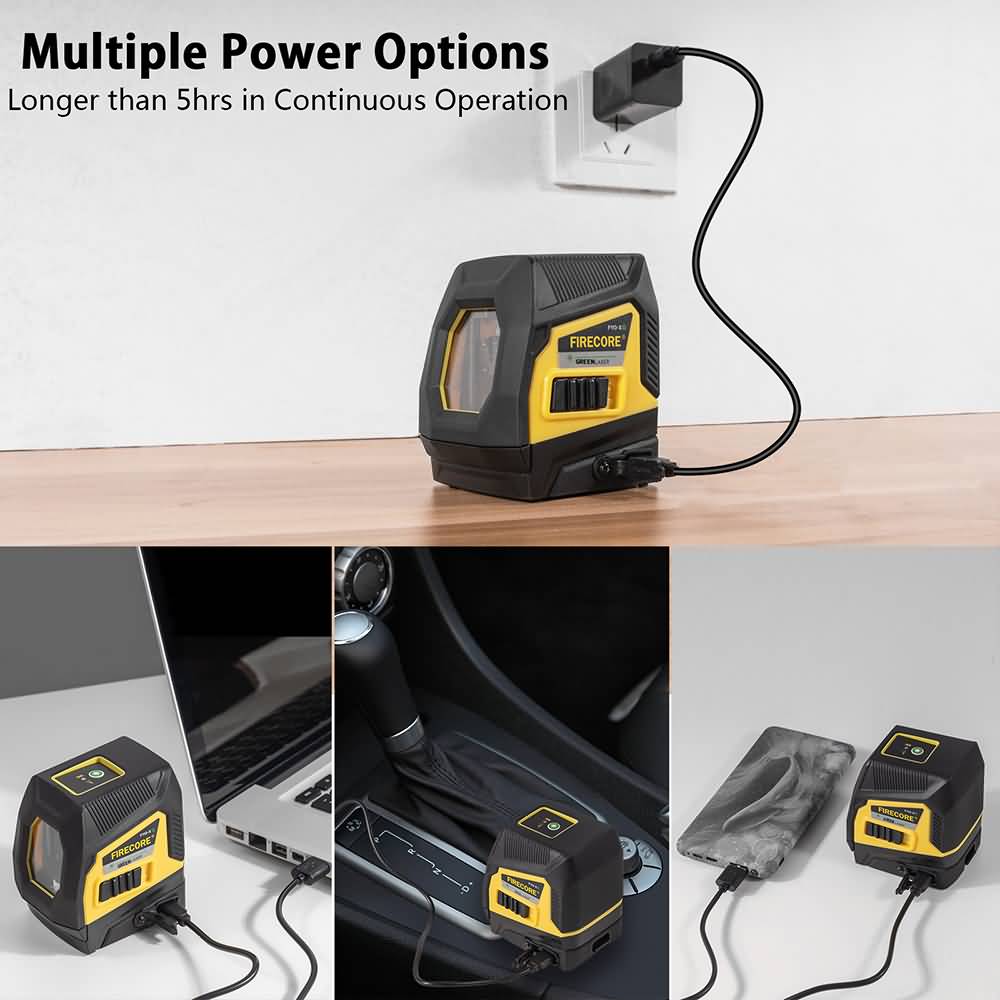

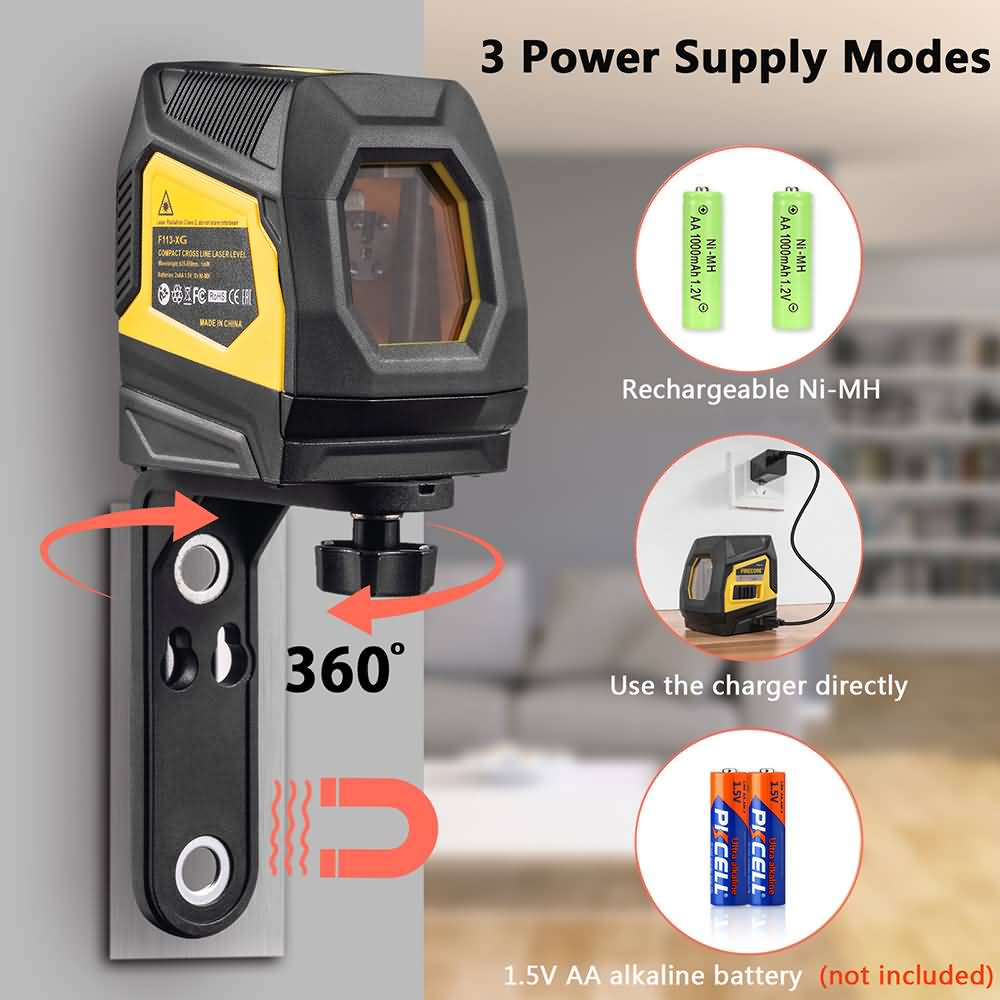

>>3 power supply modes:
1. Use rechargeable 1.2V Ni-MH battery (included)
2. Use Type-C Charging Cable directly (included)
3. Use 1.5V AA alkaline batteries (not included)
>>Self-leveling mode:
On state, the instrument will be self-leveling within 3°, when the instrument is using out of the leveling range, laser lines will keep flashing quickly.
>>Slope mode(Manual mode):
OFF state, long press the top button for about 3 seconds, the laser line will be turned on, and the laser line s inclined, when the instrument tilt angle exceeds 3º, the laser line flashes slowly and can be operated at the angle you choose
>>Pulse mode:
How to use the receiver with F113-XG F113-XR laser level?
1: First, turn on laser level's pulse mode——ON state, long press the top button for about 3 seconds, the laser line will flash 3 times and become weaker, then enter the pulse mode
2: Second, turn on the receiver and search the laser lines. When the receiver detects the laser lines, it will make "Beep" sounds. it can turn off the sound.If you don't use the receiver for more than 5 minutes, it will shut down automatically

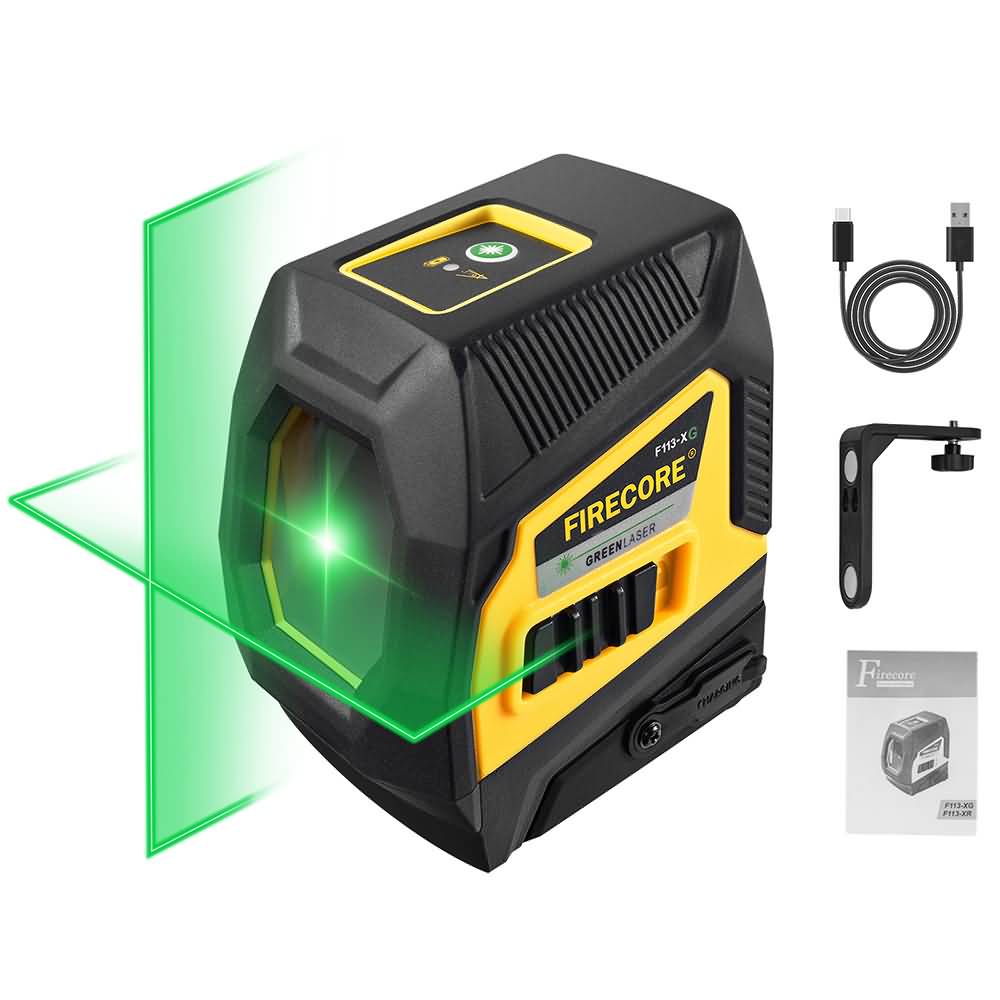

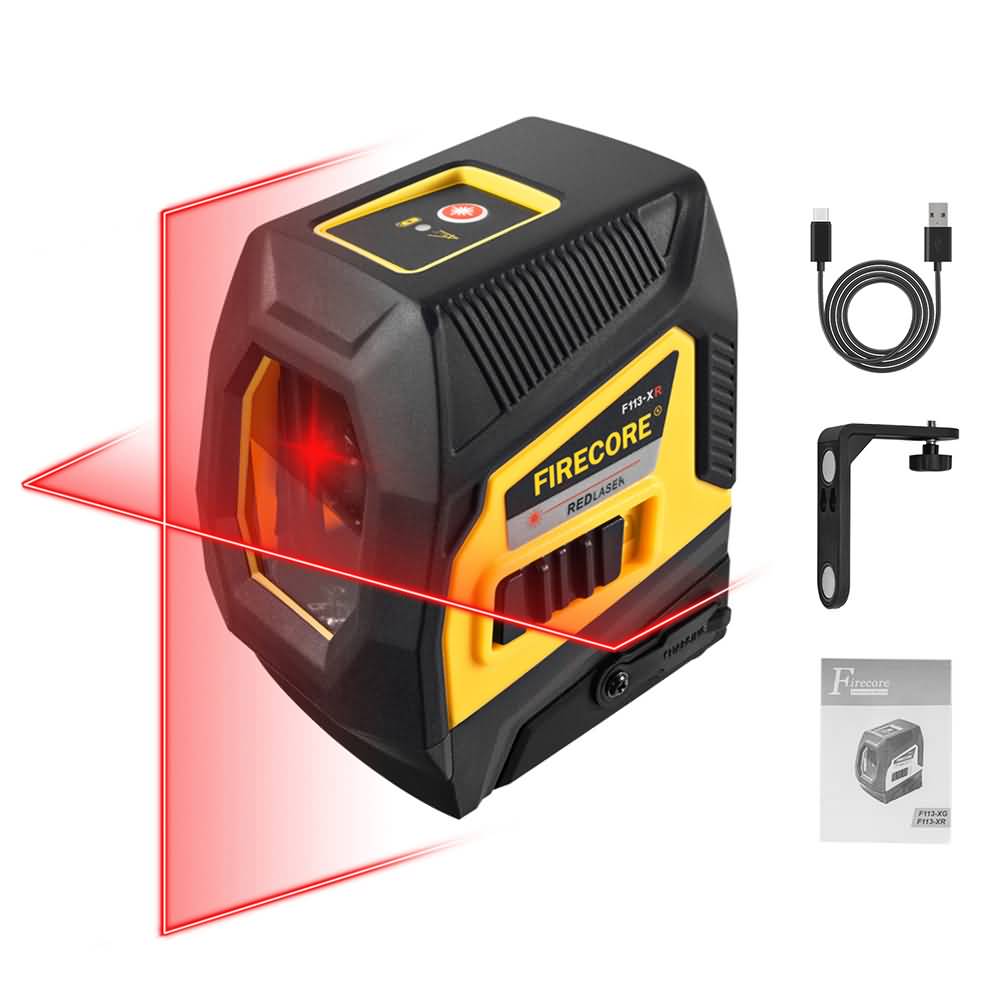

>>Package includes:
1 x Green/Red Laser Level
1 x Rechargeable Battery
1 x USB Cable
1 x 1/4'' Magnetic Bracket（Depends on options）

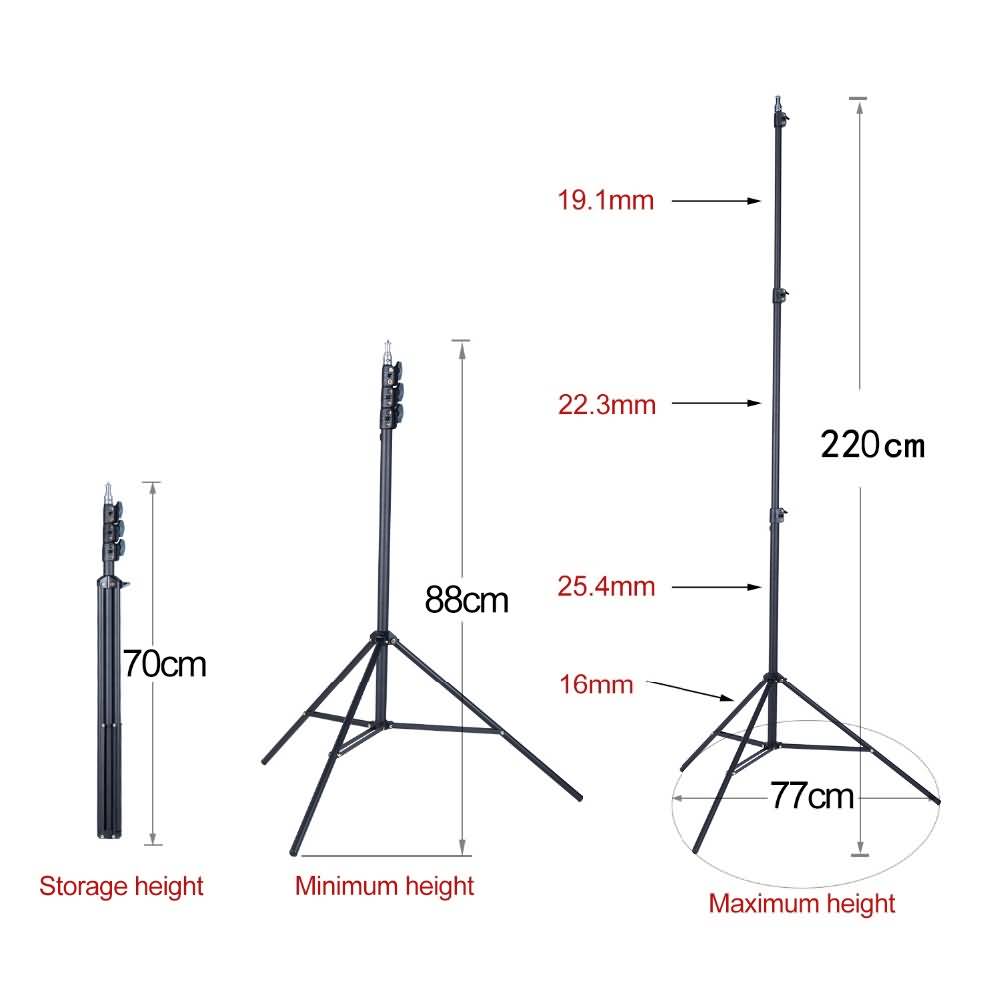

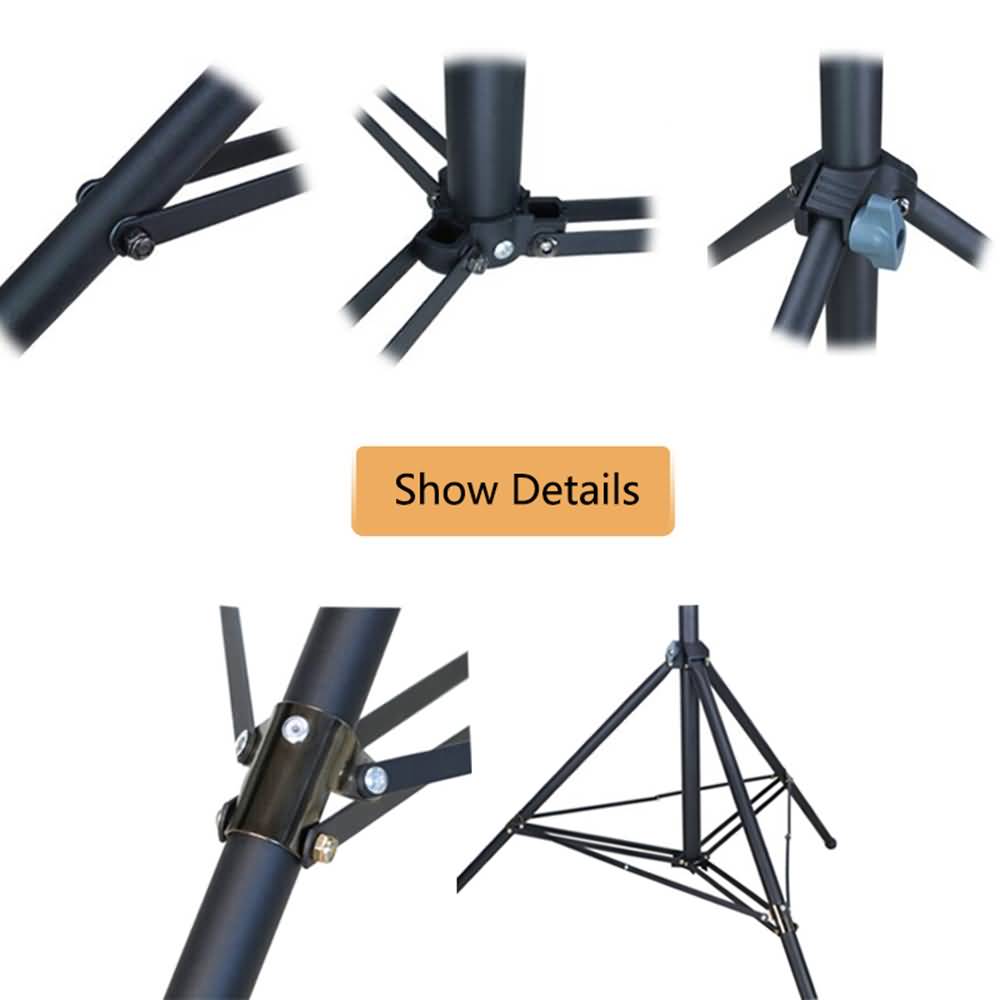

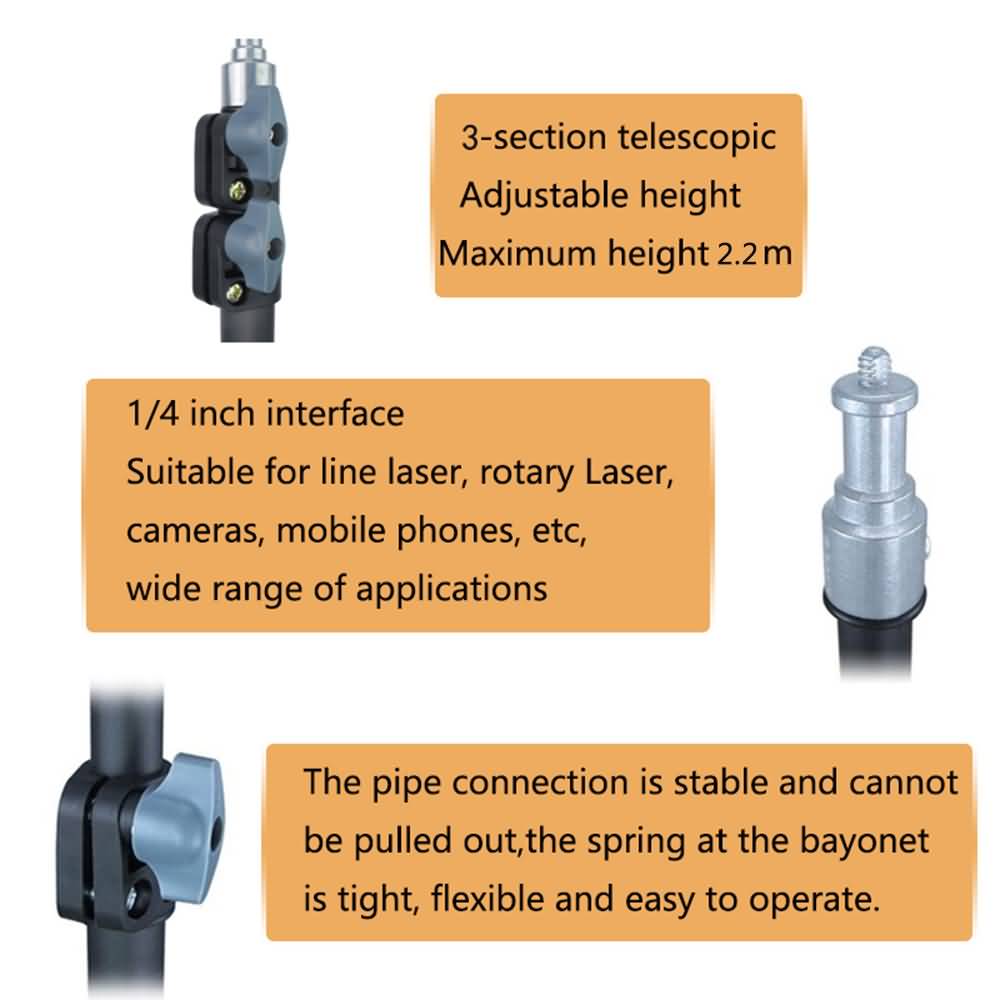

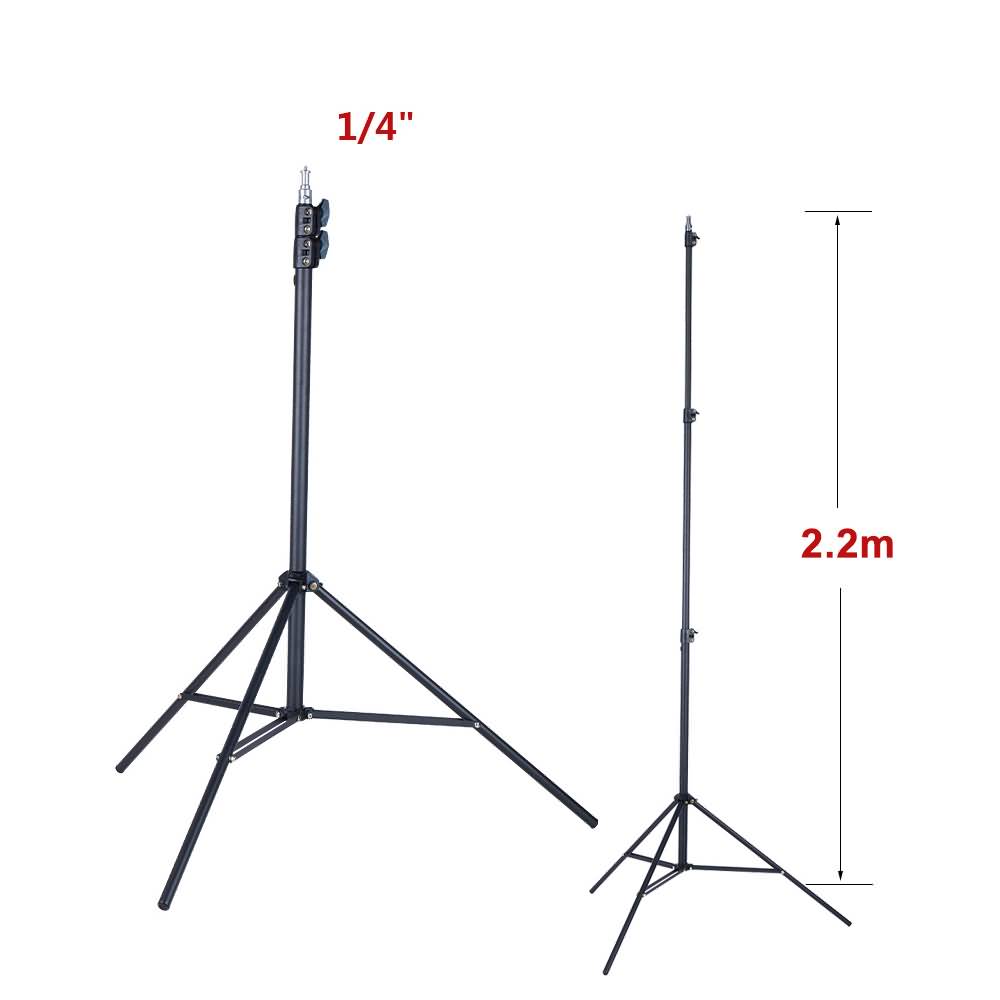

1 x 1/4'' 2M Tripod（Depends on options）
1 x Product Manual
1 x Carrying Cloth bag
1 x Carton
