Description

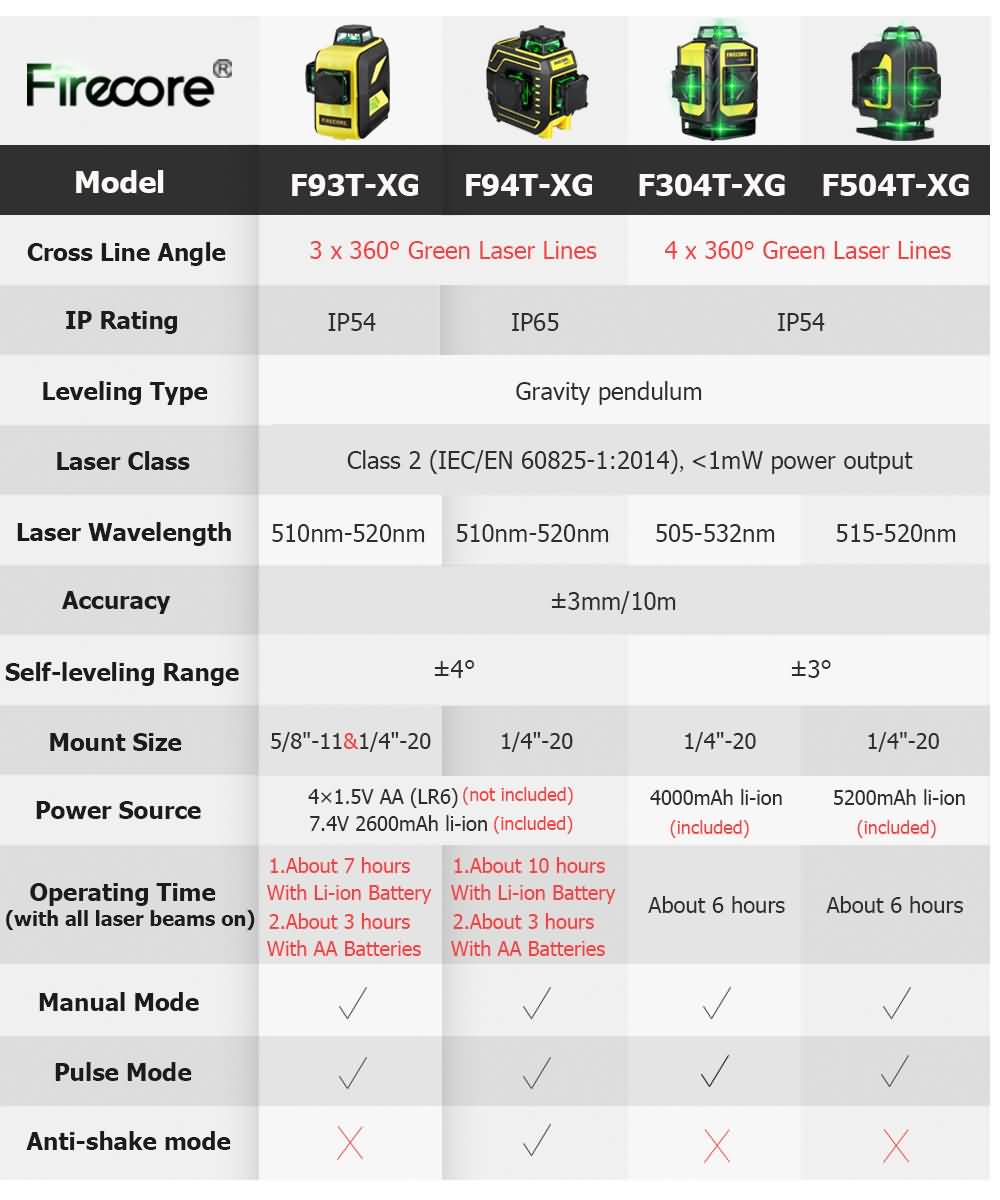

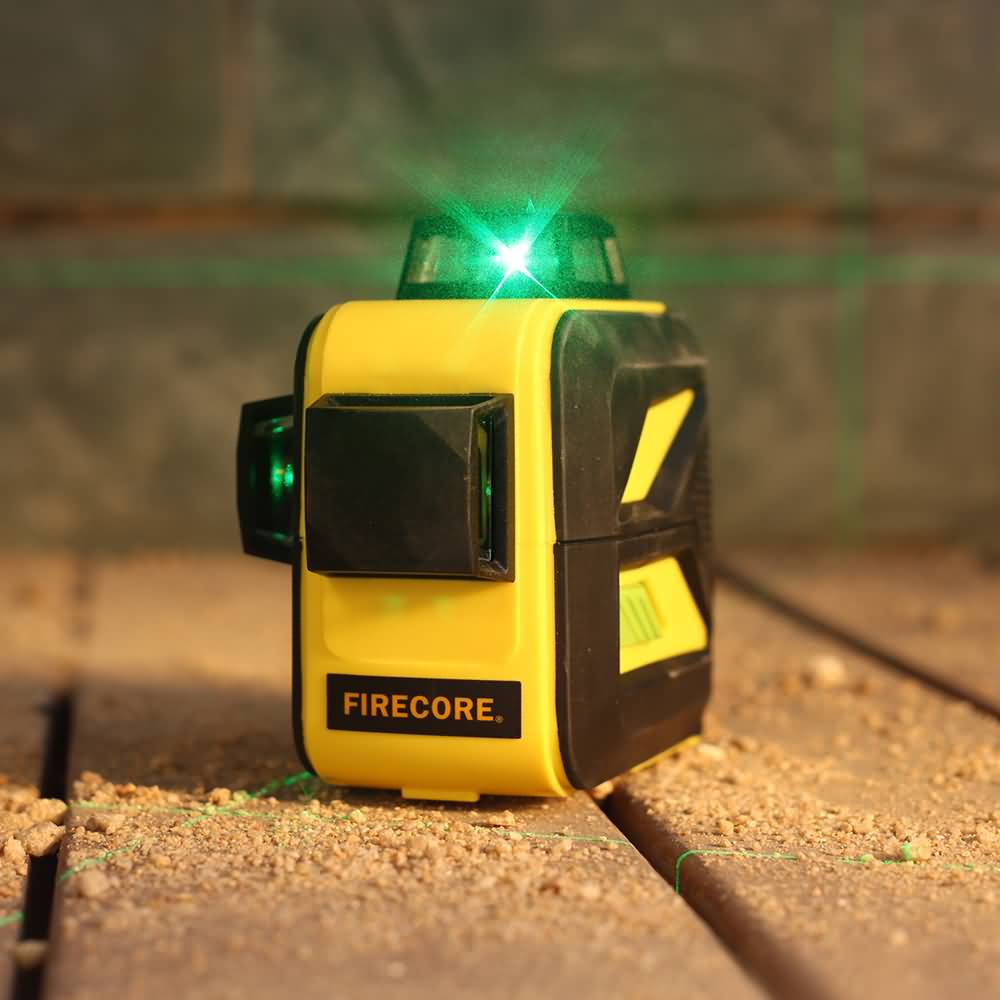

>>About Laser Level:
Model: F93T-XG
IP Rating: IP54
Laser class: Class 2 (IEC/EN 60825-1:2014)，<1mW
Laser Wavelength: Japan Sharp, 510-520nm
Horizontal/Vertical Accuracy: ±3mm/10m
Self-leveling Range: ±4°
Mount Size：1/4'' and 5/8''
Leveling Type: Gravity pendulum
Working time (with all laser beams on): About 7 hours with lithium batteries, about 3 hours with AA batteries
Working range (Radius): 25m/(up to 50m with the FIRECORE FD20 laser detector)
Power supply:Rechargeable 7.4V 2600mAh lithium battery(included) & battery compartment(not included 4*1.5V AA batterIies)
Power type: EU plug (send EU plug by default, if you need other plugs, please contact customer service)
Maintenance and after-sales: 1 year warranty

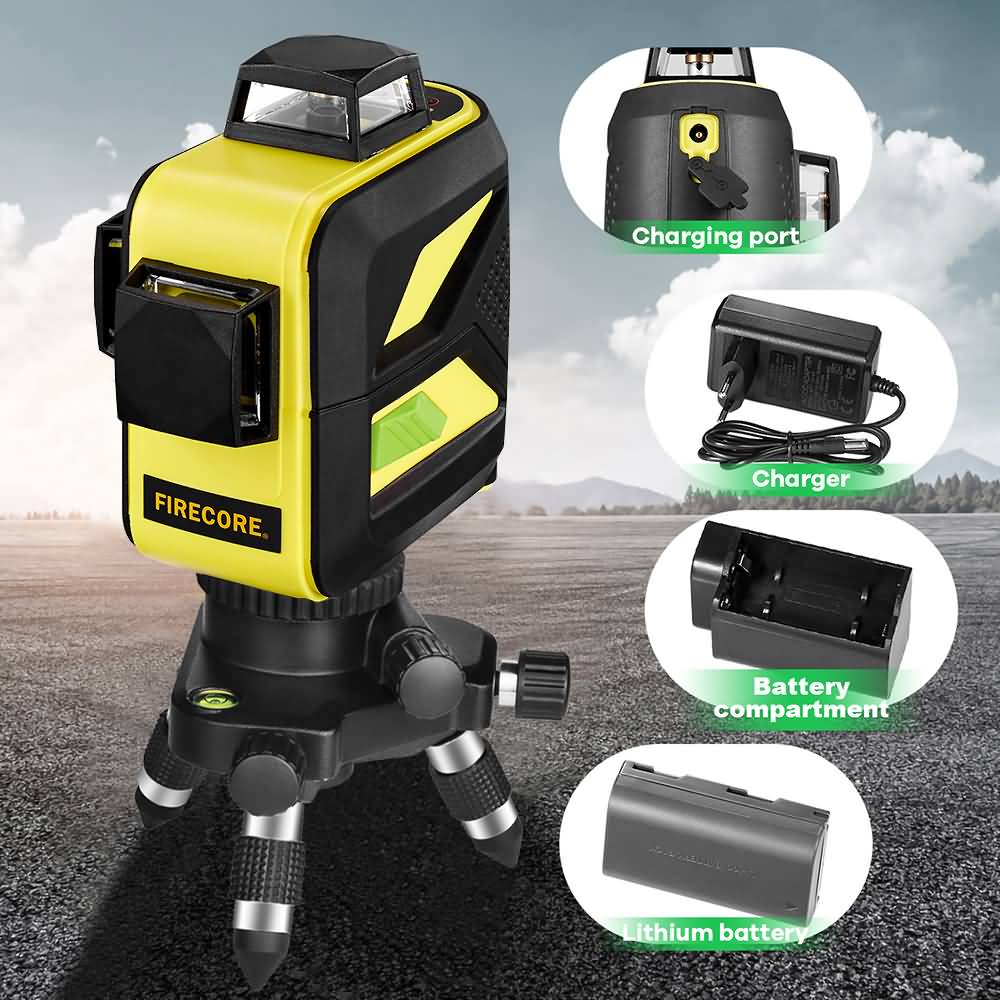

>>Three Power Sources:
1. Use lithium battery
2. Use 4pcs 1.5V AA batteries
3. Use the charger alone without any battery

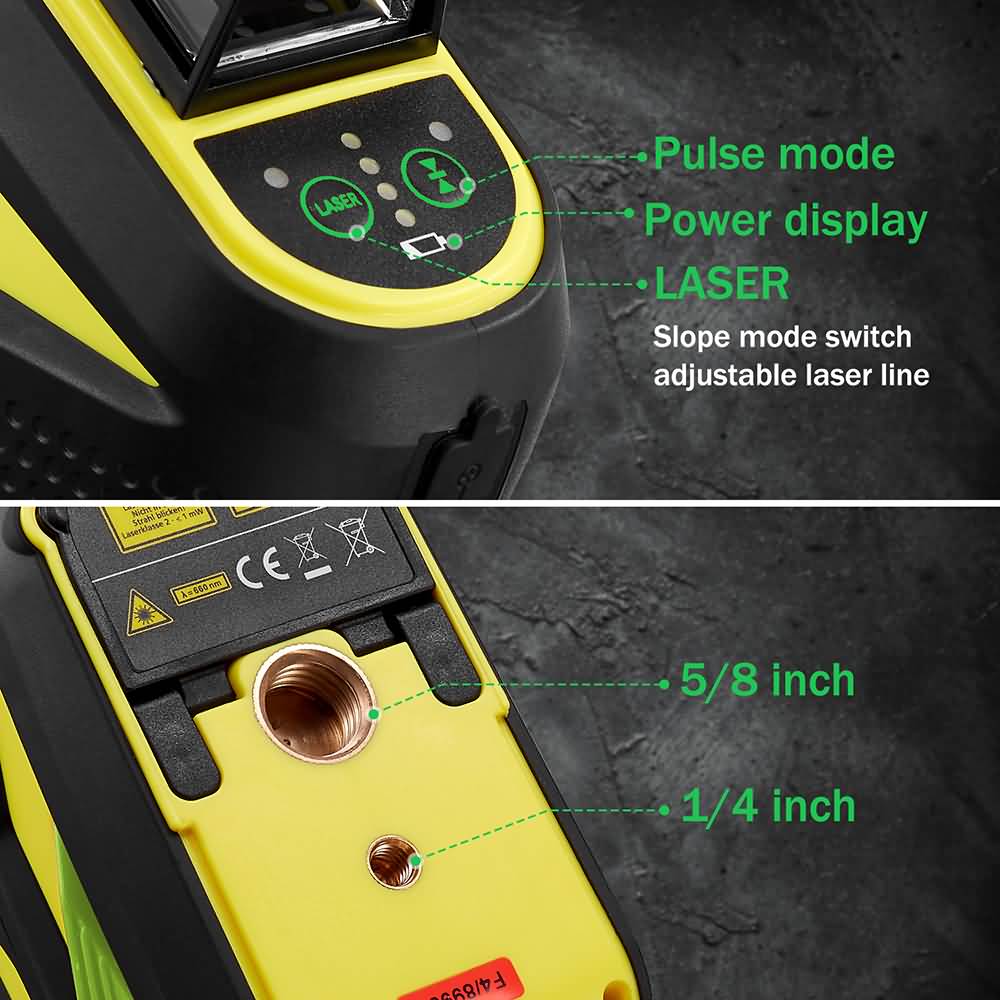

>>The button introduction:
The laser level has 3 laser windows, each window can launch 4 laser lines, totally 12 laser lines(4 laser lines combine to a plane). Attention: There are at least 4 laser lines, it can not keep 1 or 2 laser lines
>>Self-leveling function:
On state, the instrument will be self-leveling within 4°, when the instrument is using out of the leveling range, laser lines will keep flashing quickly.
>>Slope mode(Manual mode):
Off state, press and hold the "LASER" button for about 3 seconds, the laser line will be turned on, and the laser line s inclined, when the instrument tilt angle exceeds 4º, the laser line flashes slowly and can be operated at the angle you choose. Long press "LASER" button to exit this mode.

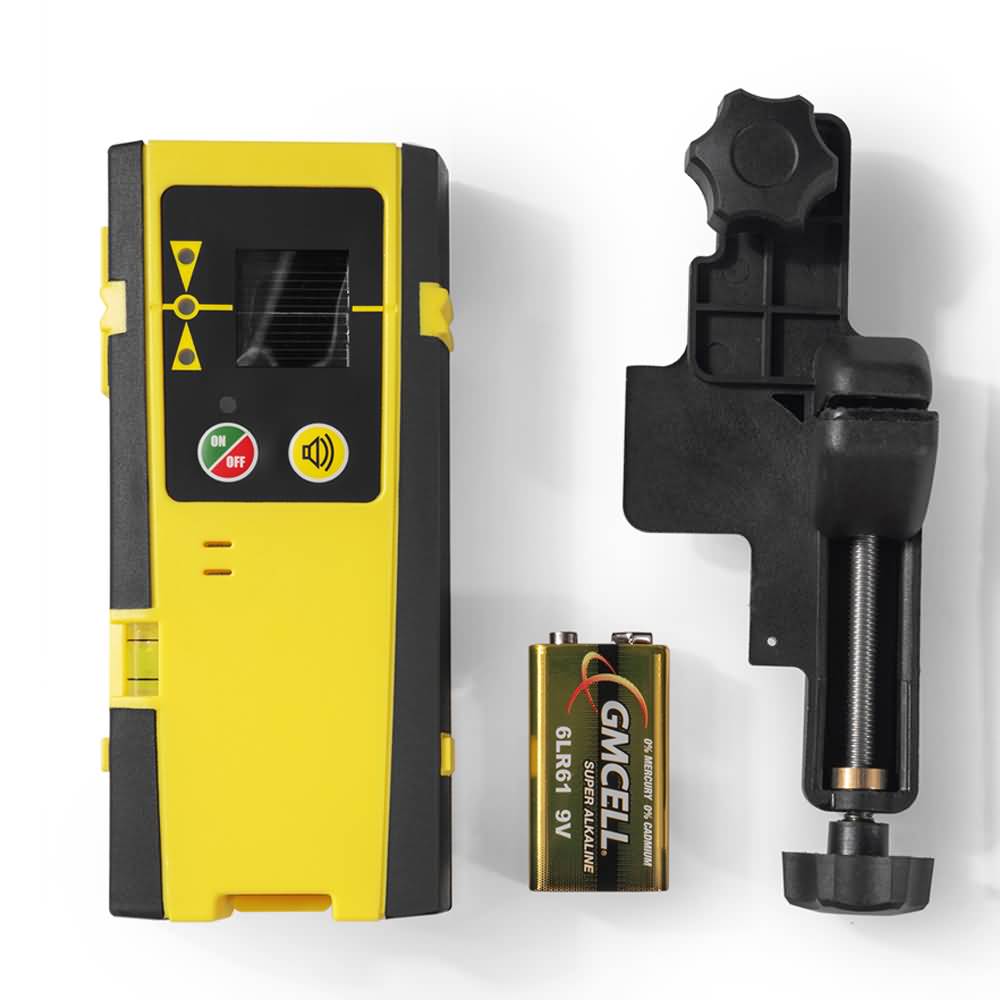

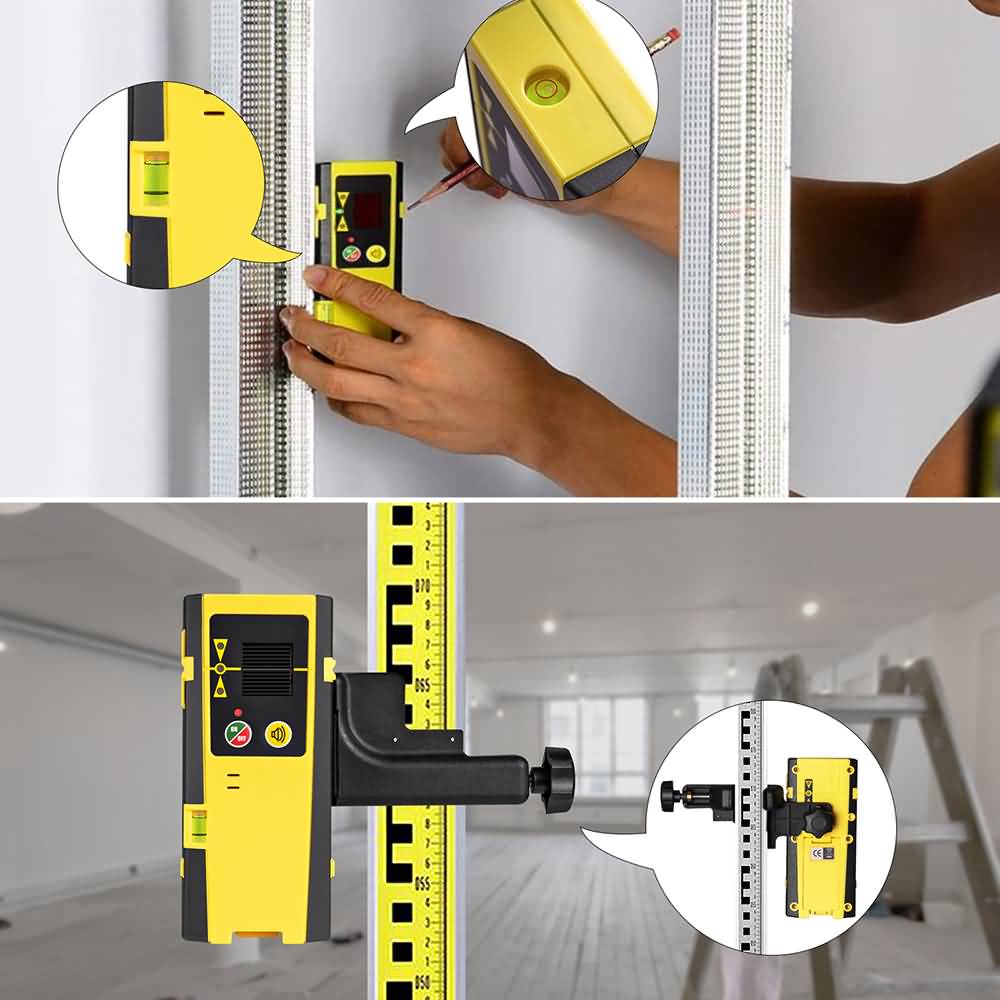

>>How to use the receiver with F93T-XG laser level?
1: First, turn on laser level's pulse mode——On state, press the ''
'' button to enter pulse mode,the laser line weakens
'' button to enter pulse mode,the laser line weakens2: Second, turn on the receiver and search the laser lines. When the receiver detects the laser lines, it will make "Beep" sounds. it can turn off the sound.If you don't use the receiver for more than 5 minutes, it will shut down automatically
>>Note:
1.If you only receive 1 package, please do not doubt,due to the packaging and weight restrictions, we need to split your order into 2 packages, hoping to get the understanding of our customer friends, thank you very much!

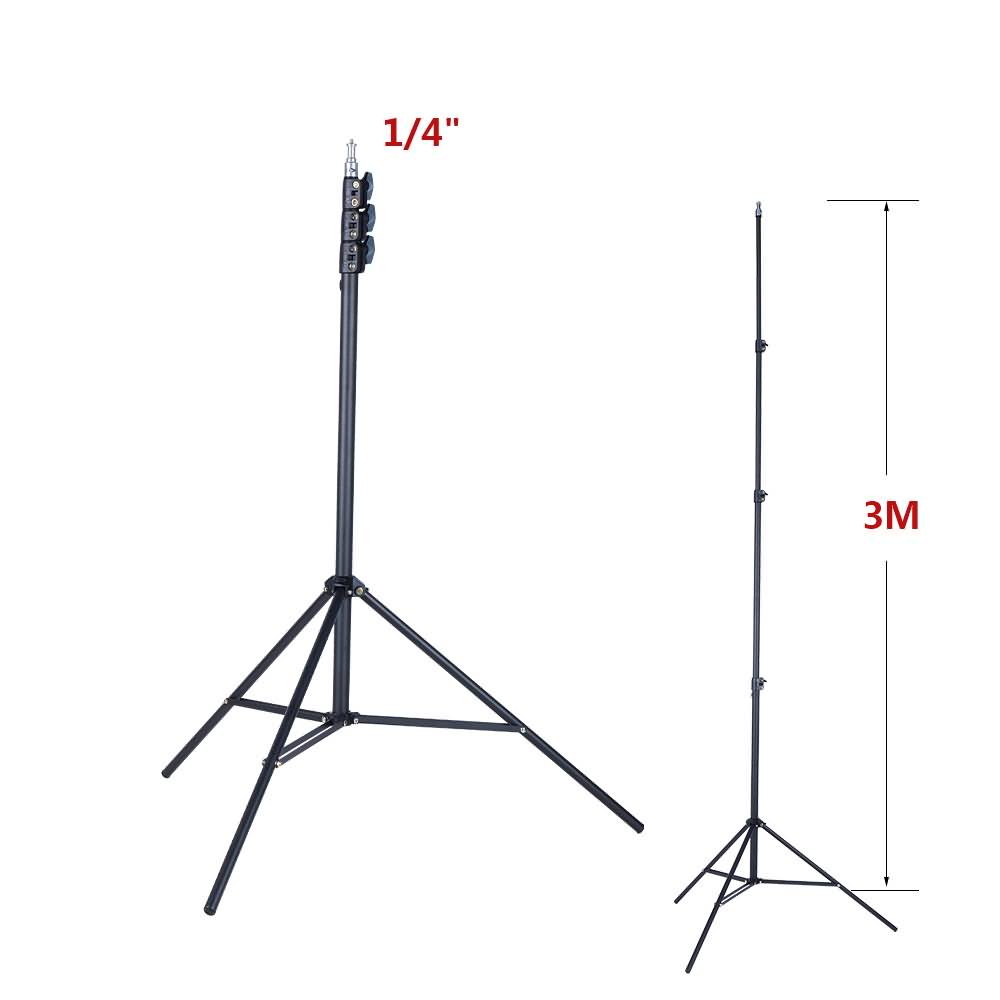

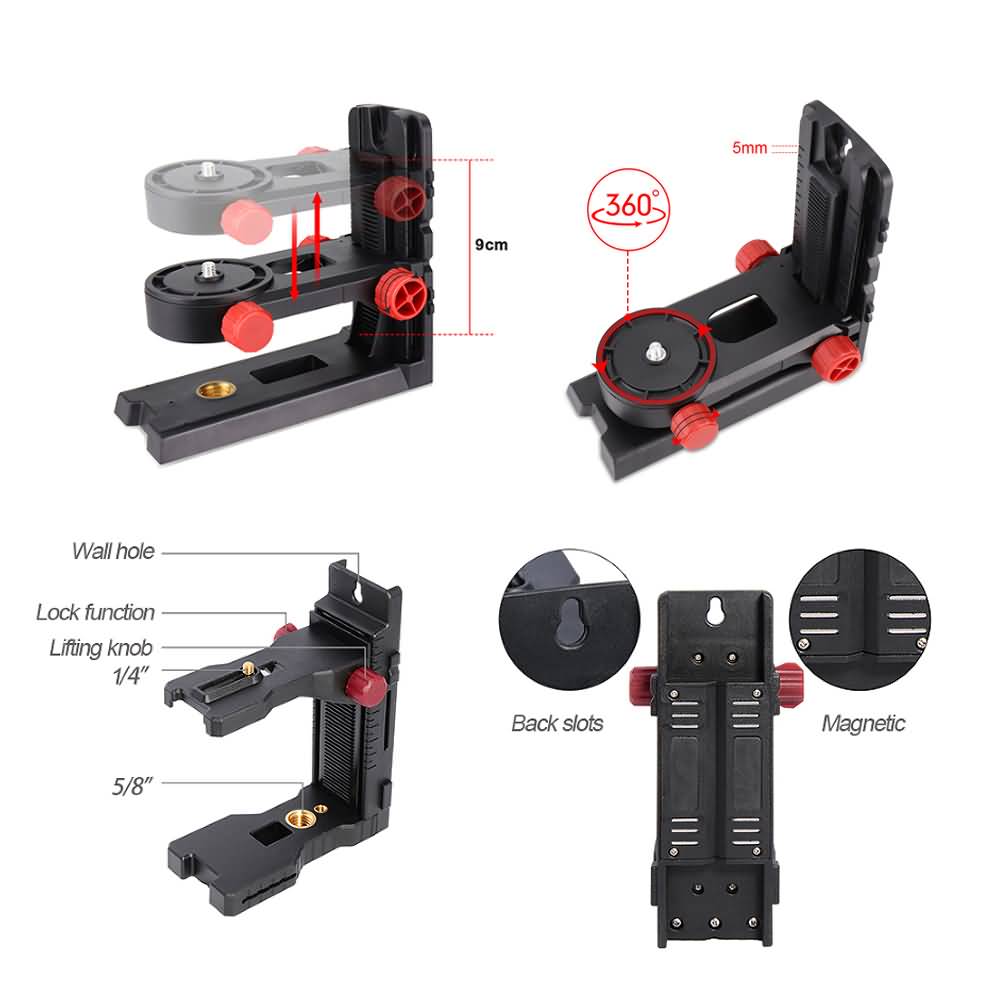

2.If you choose Option 1/2/7/8 there will be a L-magnetic bracket in the package , Option 3/4 will be a 3m tripod with clip，Option 5/6 will be a receiver
