Description

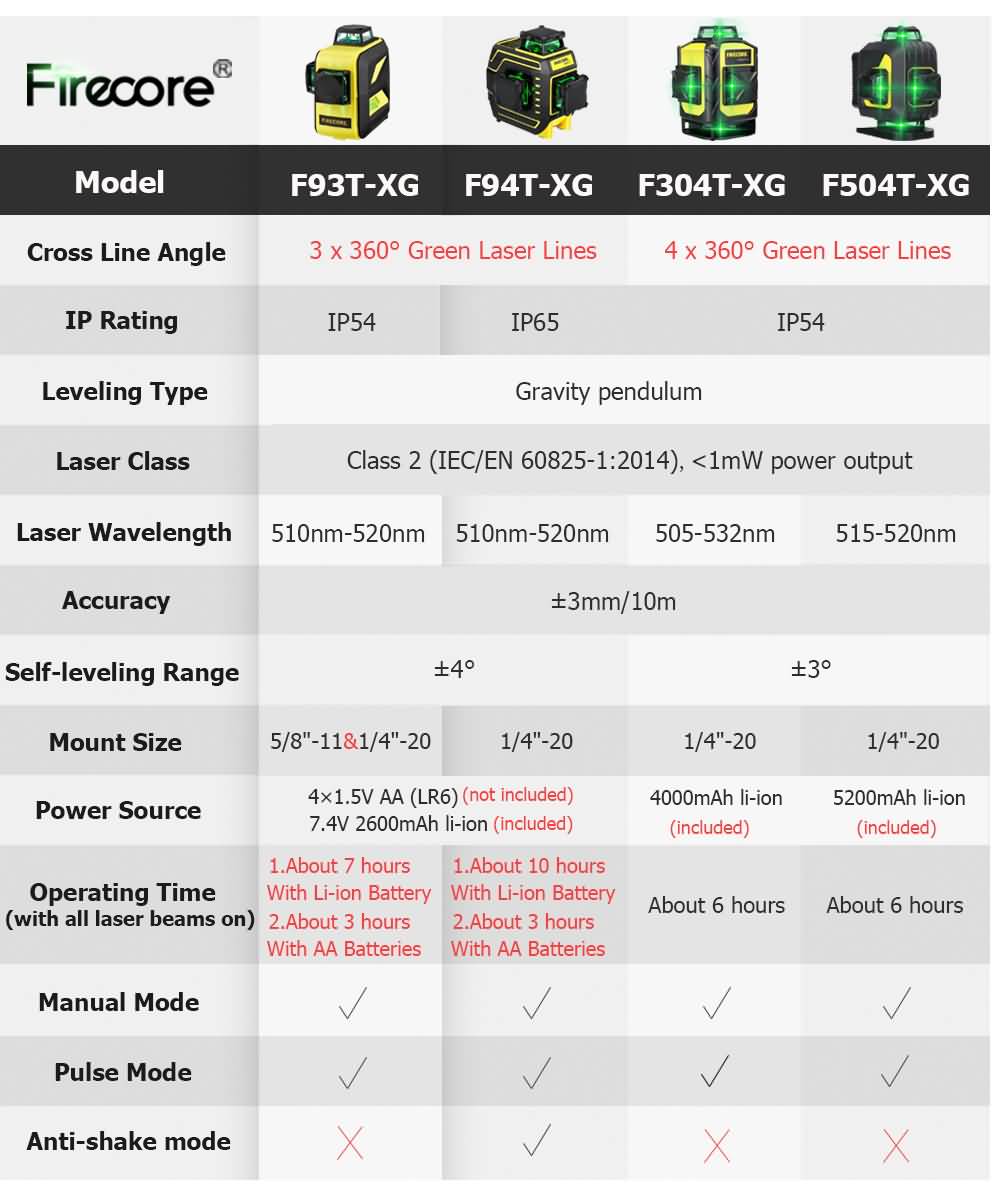

>>Parameter:
Model: F94T-XG
IP Rating: IP65
Laser class: Class 2 (IEC/EN 60825-1:2014),<1mW
Laser Wavelength: Japan Sharp, 510-520nm
Horizontal/Vertical Accuracy: ±3mm/10m
Self-leveling Range: ±4°
Mount Size: 1/4''
Leveling Type: Gravity pendulum
Working time (with all laser beams on): About 10 hours with lithium batteries, about 3 hours with AA batteries
Working range (Radius): 25m/(up to 50m with the FIRECORE FD20 laser detector)

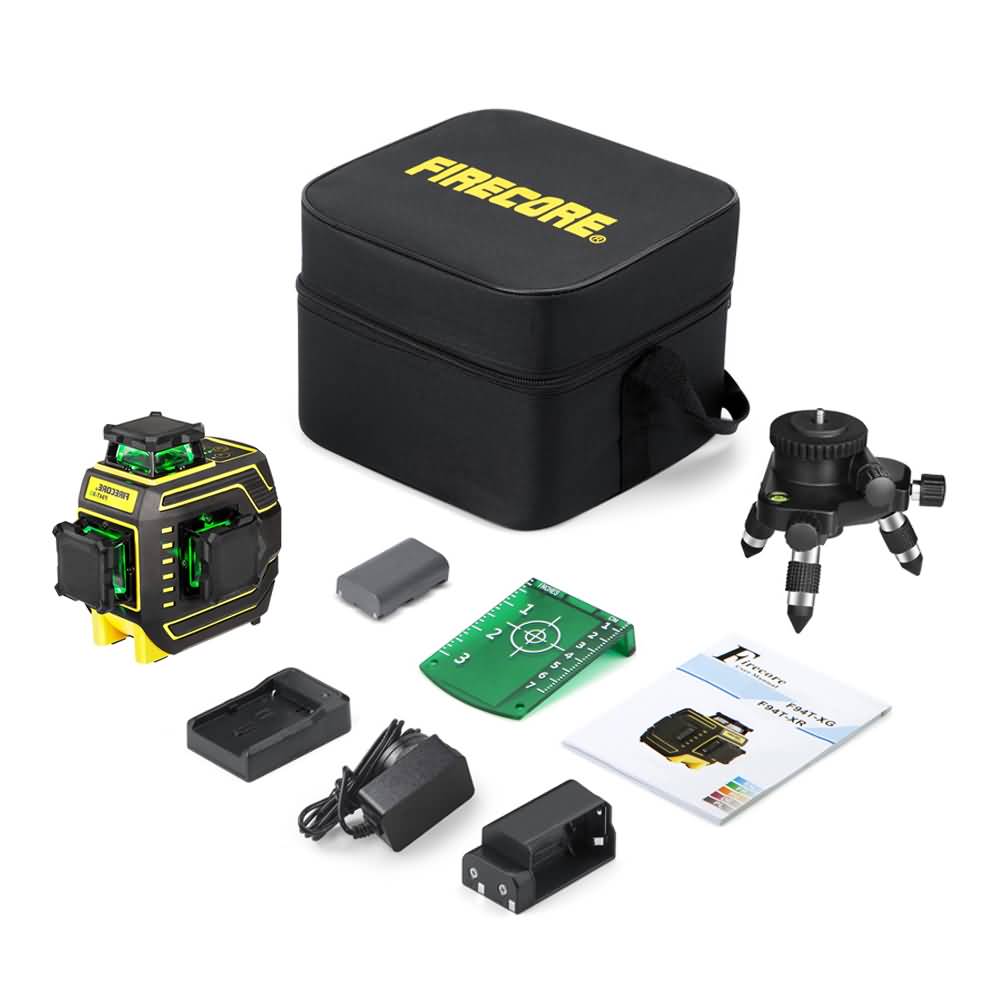

Power supply:Rechargeable 7.4V 2600mAh lithium battery(included) & battery compartment(not included 4*1.5V AA batterIies)
Power type: EU plug (send EU plug by default, if you need other plugs, please contact customer service)
Maintenance and after-sales: 1 year warranty

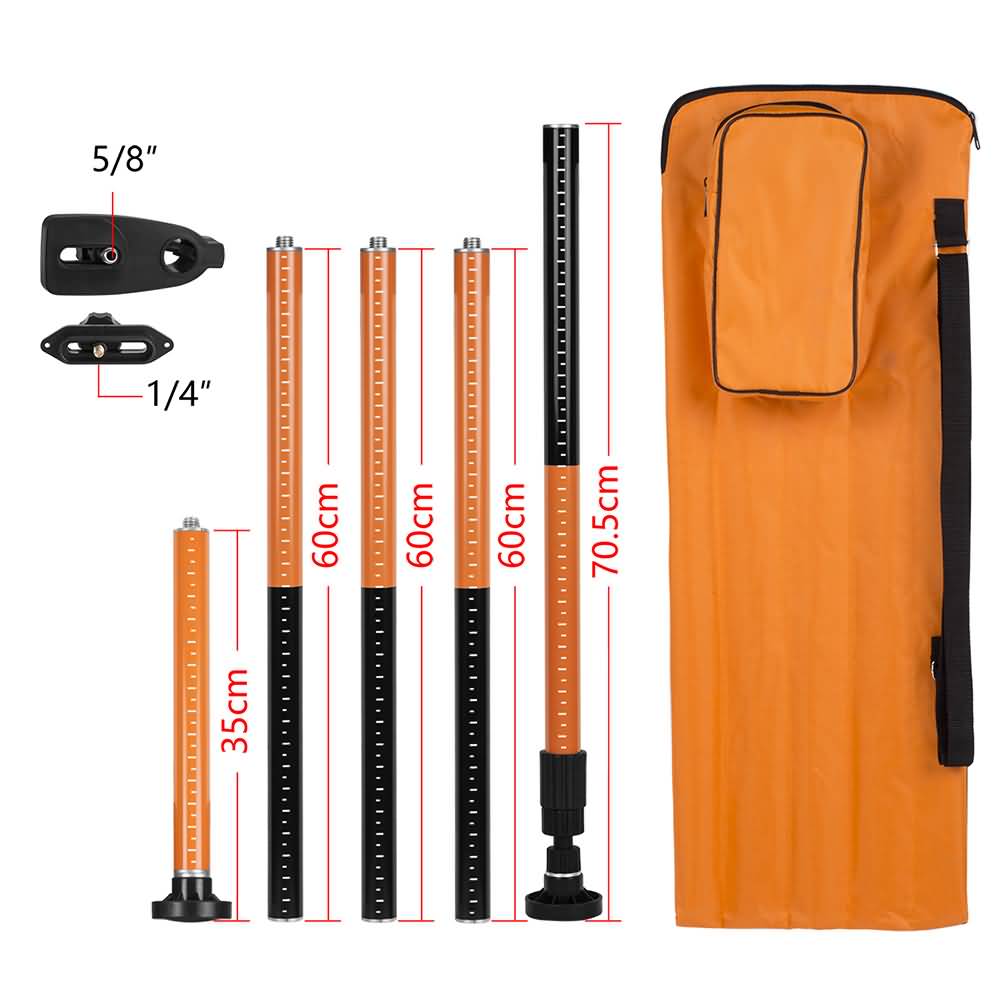

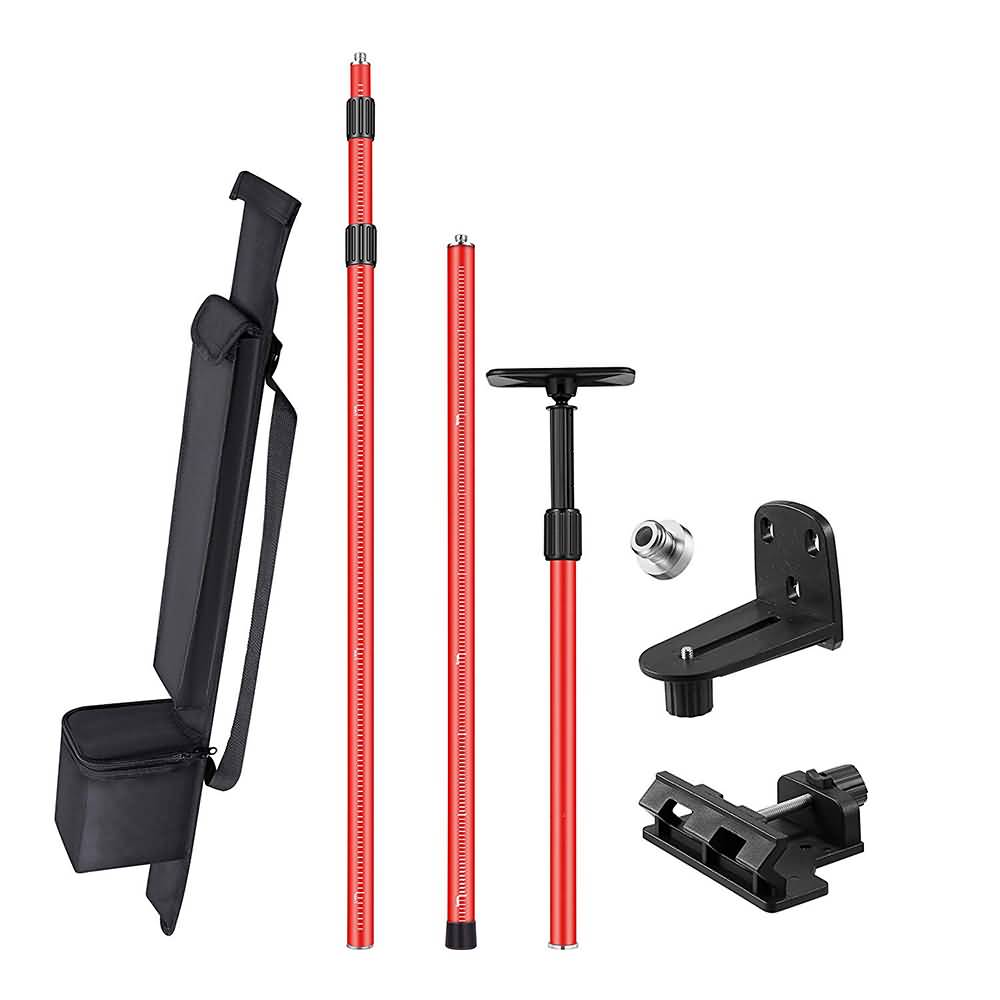

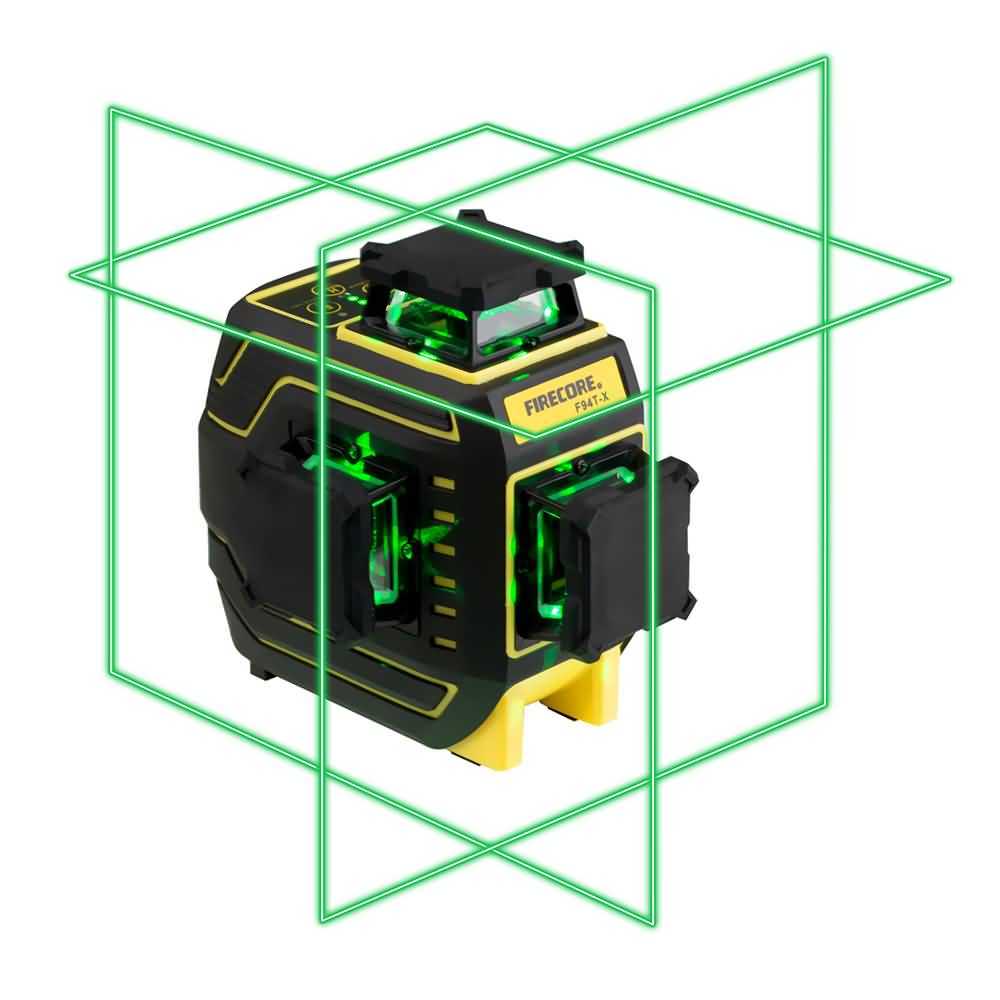

laser nivel 3D 12 lines laser level green light Self-Leveling лазерный уровень 360 With extension rod
>>Product highlights:

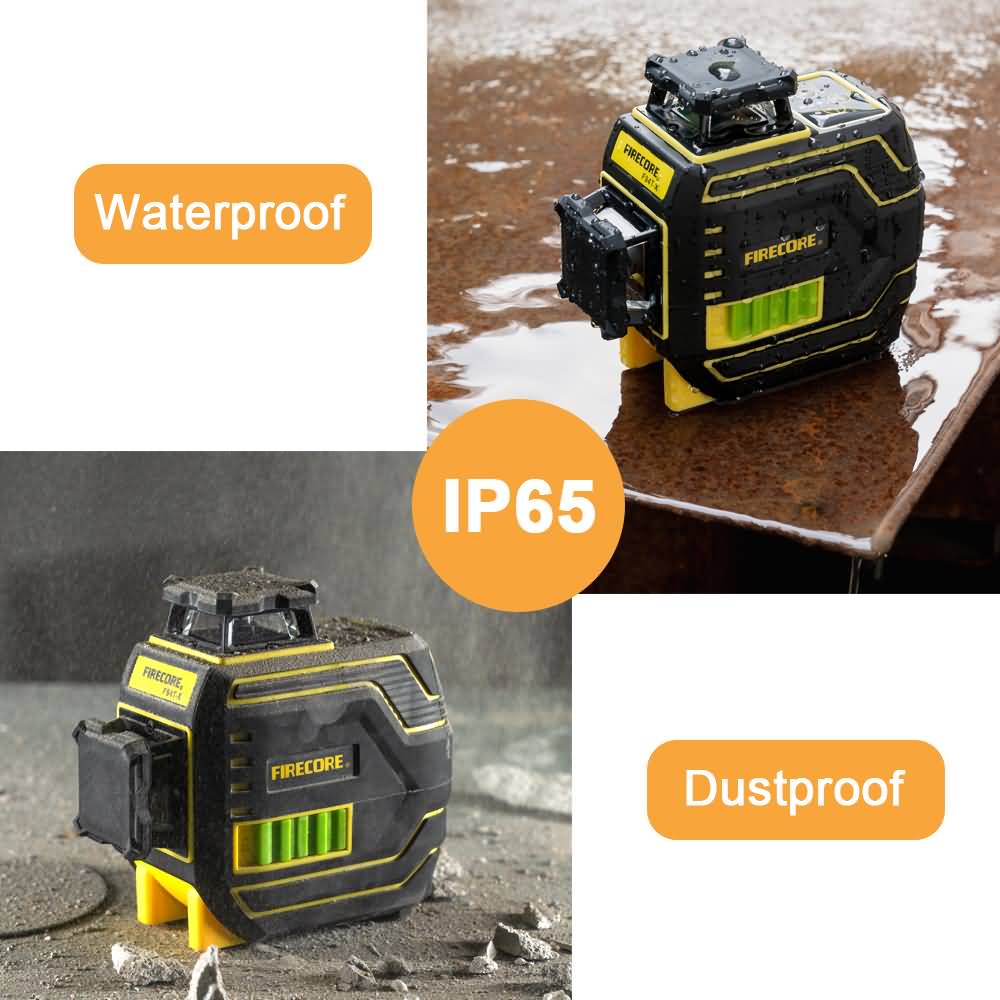

1. Laser class: IP65. Better waterproof and dustproof
2. Longer working hours, about 10-11 hours, two lithium batteries provide 20 hours of working time
3. The laser tool is covered by TPR soft rubber, with 3pcs upgraded rubber window mats, which bring soft touch and stronger protection for Anti-Drop
4. Added anti-shake function than ordinary 3D to improve the error caused by vibration or wind during construction
5. Can use 1.5V battery or 2600mah lithium battery
6. High precision and high visibility, the green laser beam is twice as bright as the red laser beam

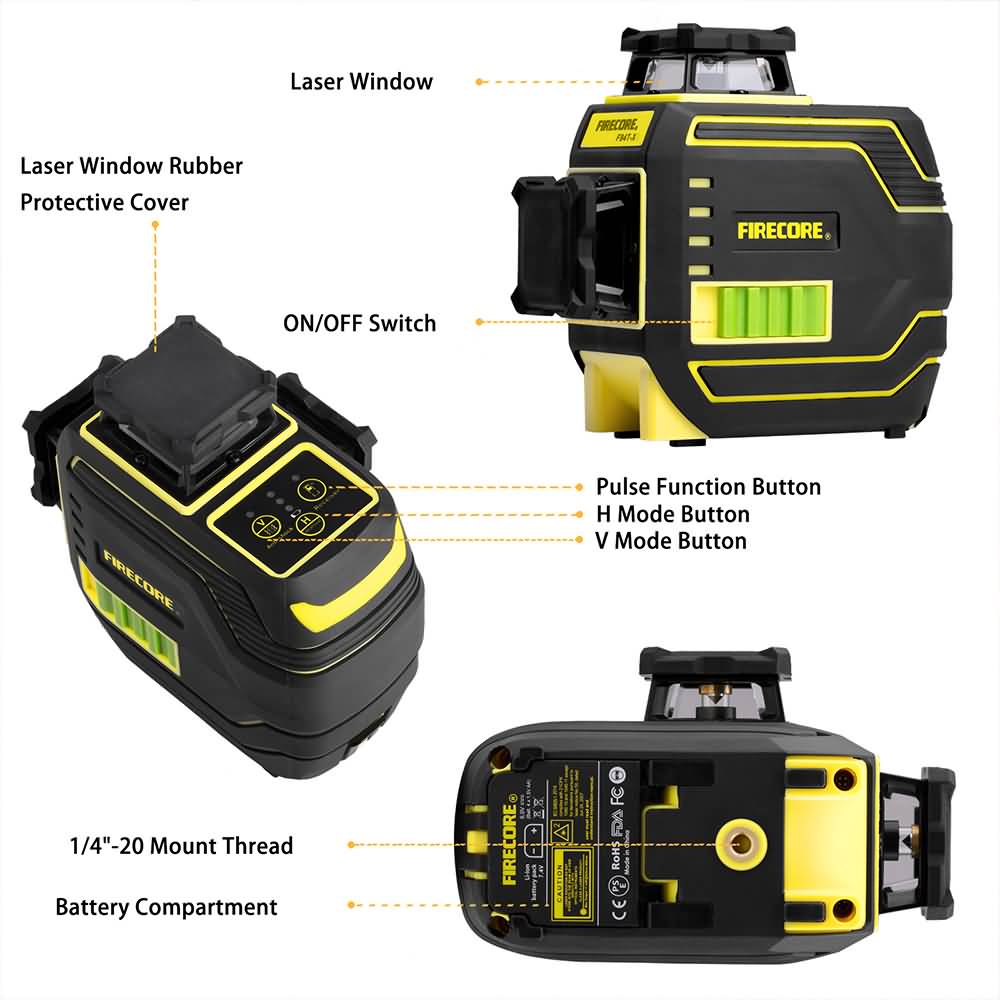

7. There are 3 battery indicator lights on the keyboard to check the battery level

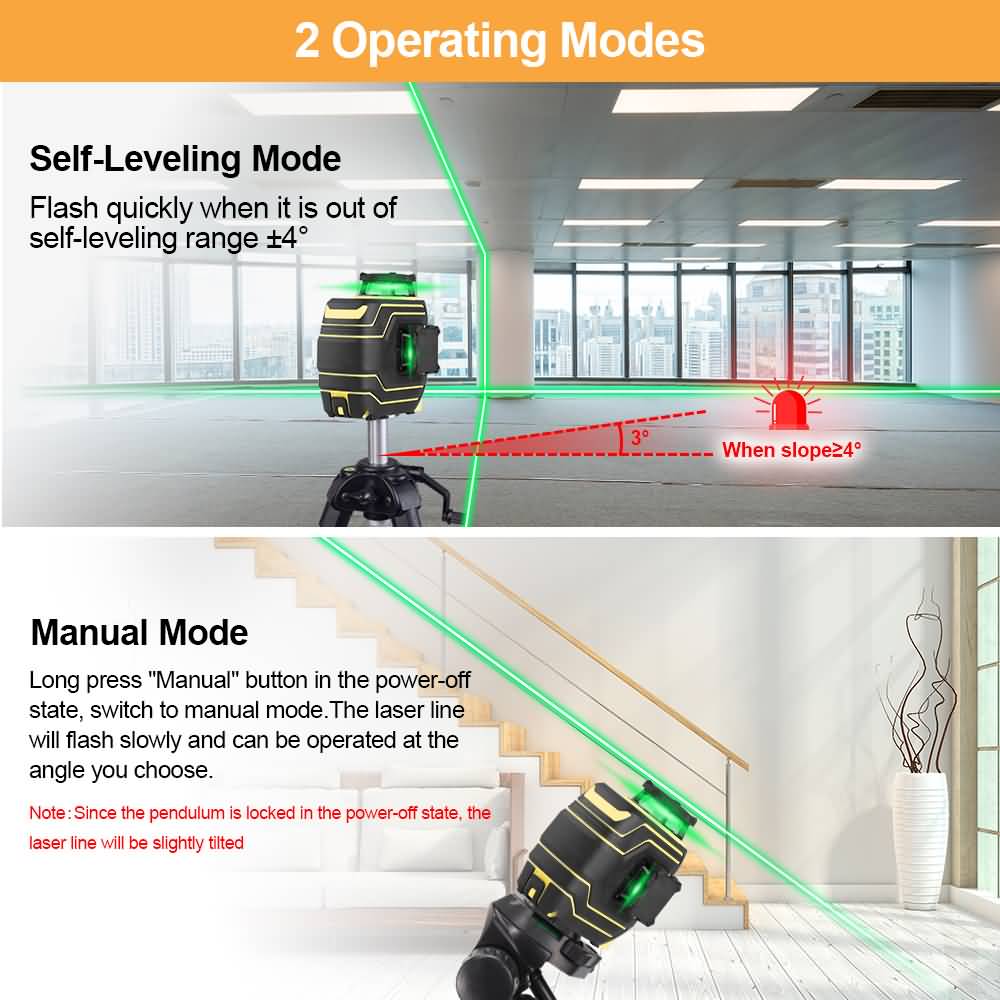

>>Self-leveling function:
On state, the instrument will be self-leveling within 4°, when the instrument is using out of the leveling range, laser lines will keep flashing quickly.
>>Anti-shake mode:
On state, press and hold the "Anti-shake" button for about 3 seconds, when the indicator light stops flashing, it will enter the anti-shock mode. In this mode, the laser line will be automatically turned off due to vibration, tilt or displacement, which for improving the error caused by vibration or wind during construction. This mode can be turned off by turning off the power or long pressing the "Anti-shake" button.
>>Slope mode(Manual mode):
Off state, press and hold the "Manual" button for about 3 seconds, the laser line will be turned on, and the laser line s inclined, when the instrument tilt angle exceeds 4º, the laser line flashes slowly and can be operated at the angle you choose. Long press "Manual" button to exit this mode.

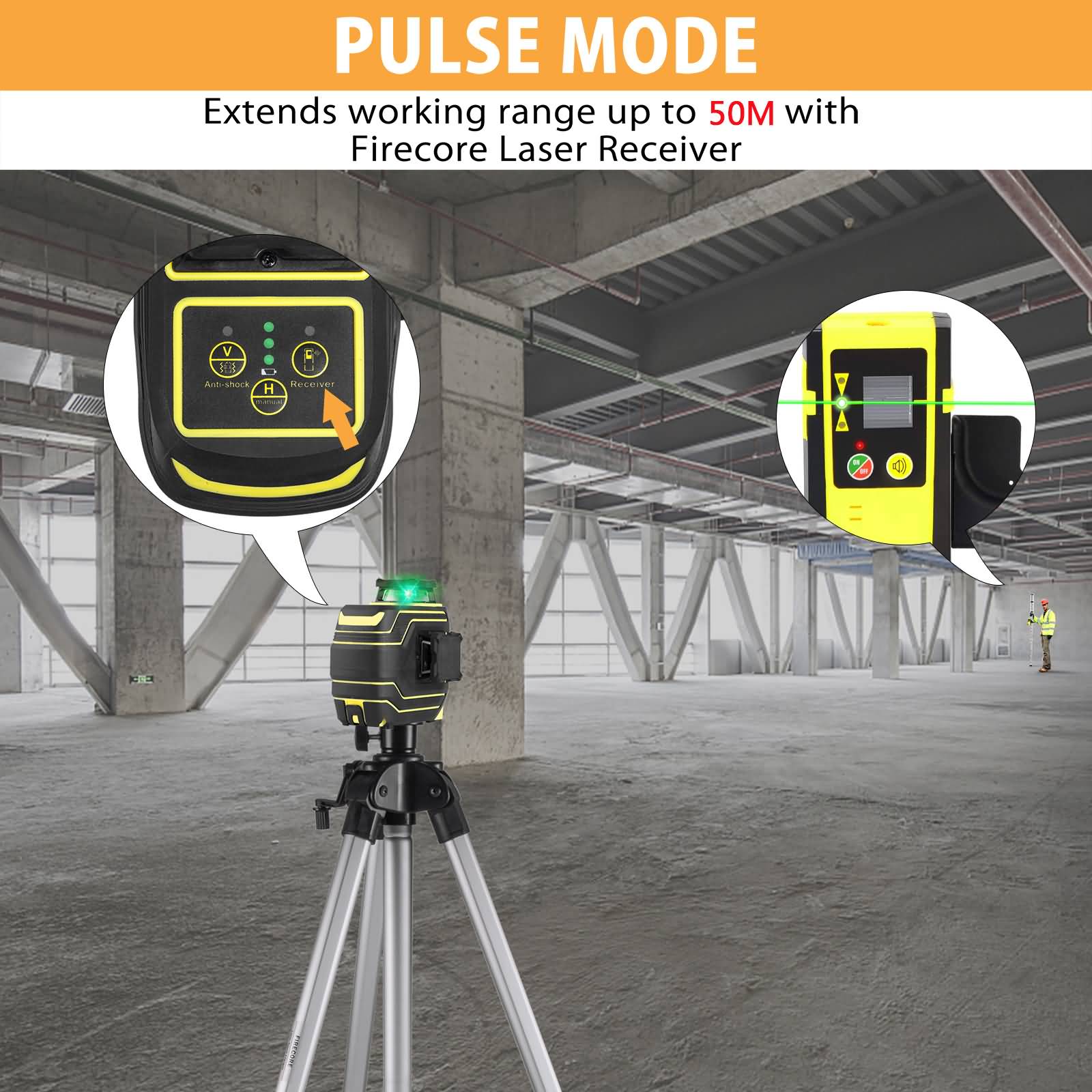

>>Pulse mode:
How to use the receiver with F94T-XG laser level?
1: First, turn on laser level's pulse mode——Press the "Receiver" button, after flashing about 3 times until it stops flashing and then enters the pulse mode
2: Second, turn on the receiver and search the laser lines. When the receiver detects the laser lines, it will make "Beep" sounds. it can turn off the sound.If you don't use the receiver for more than 5 minutes, it will shut down automatically
