Description

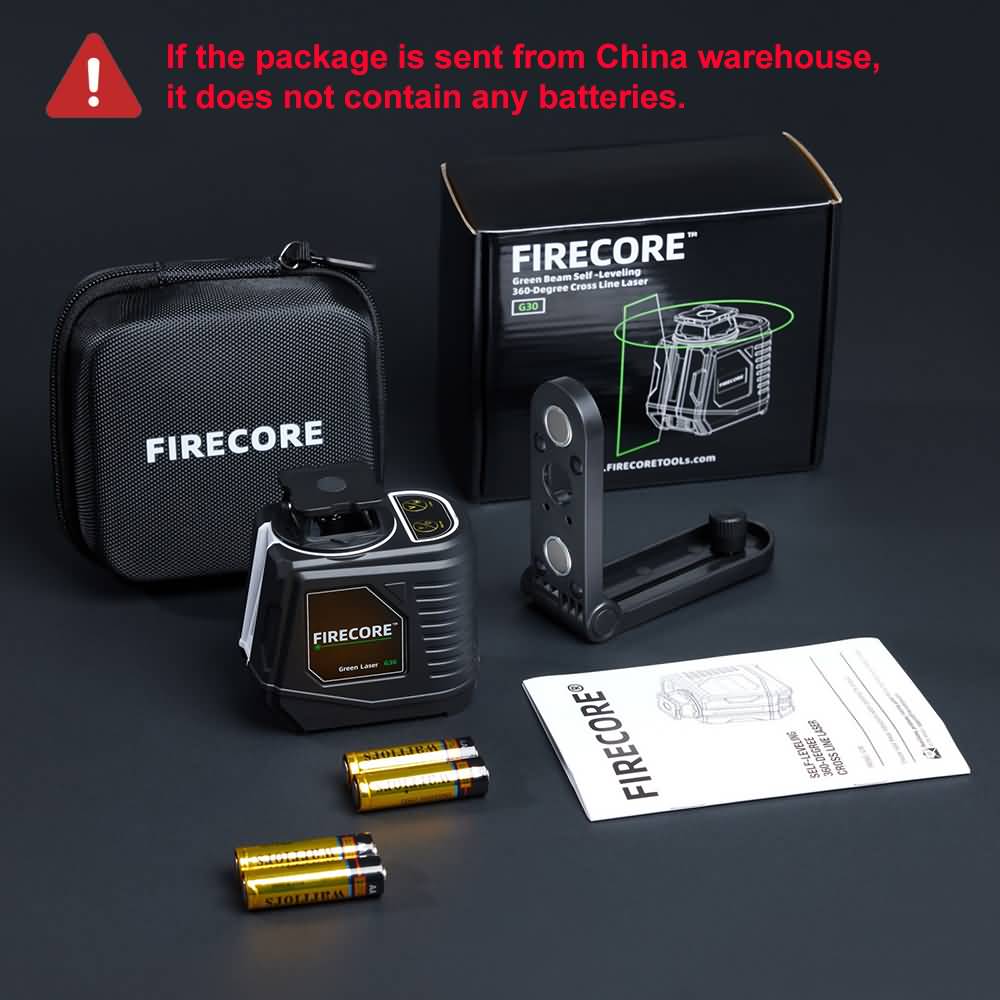

Note：If the package is sent from China warehouse, it does not contain any batteries
>>Parameter:
Model: G30

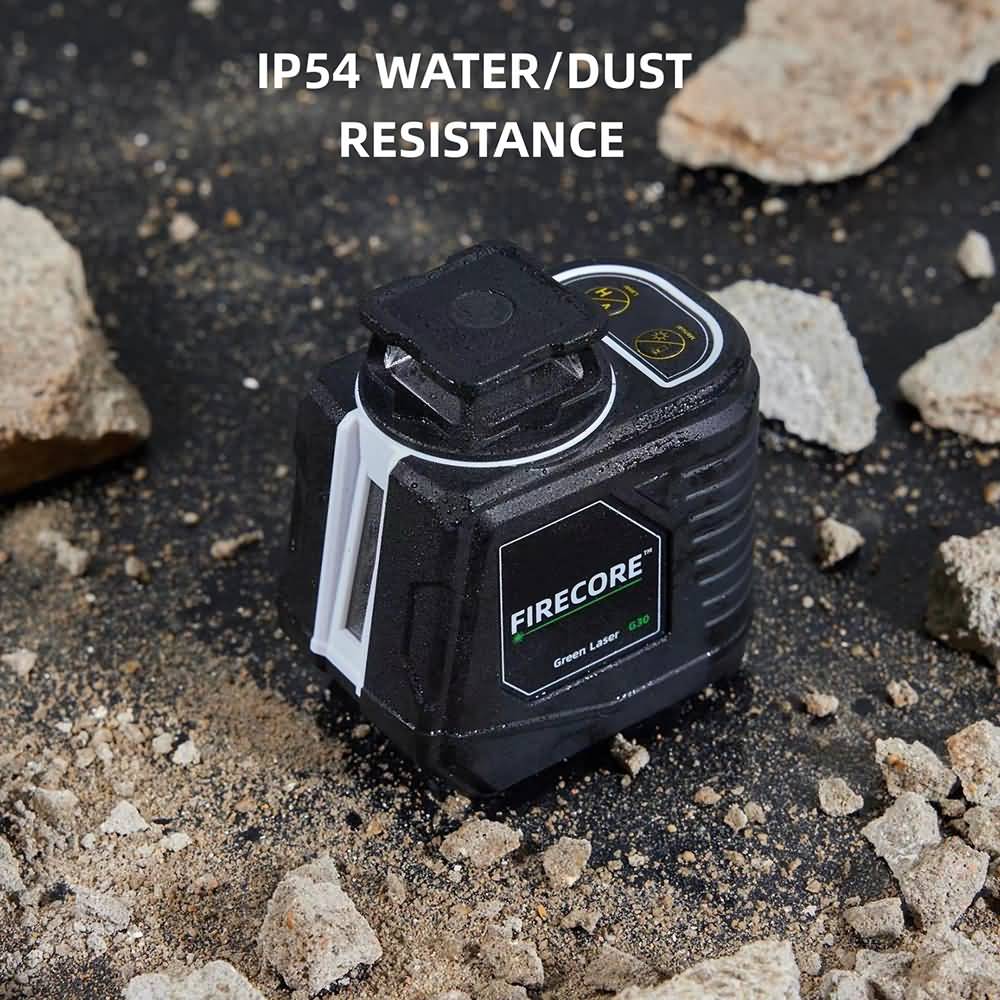

IP Rating: IP54
Laser class: Class 2 (IEC/EN 60825-1:2014)，<1mW
Laser Wavelength: 505-520nm
Horizontal/Vertical Accuracy: ±1.5mm/7m
Self-leveling Range: ±3°

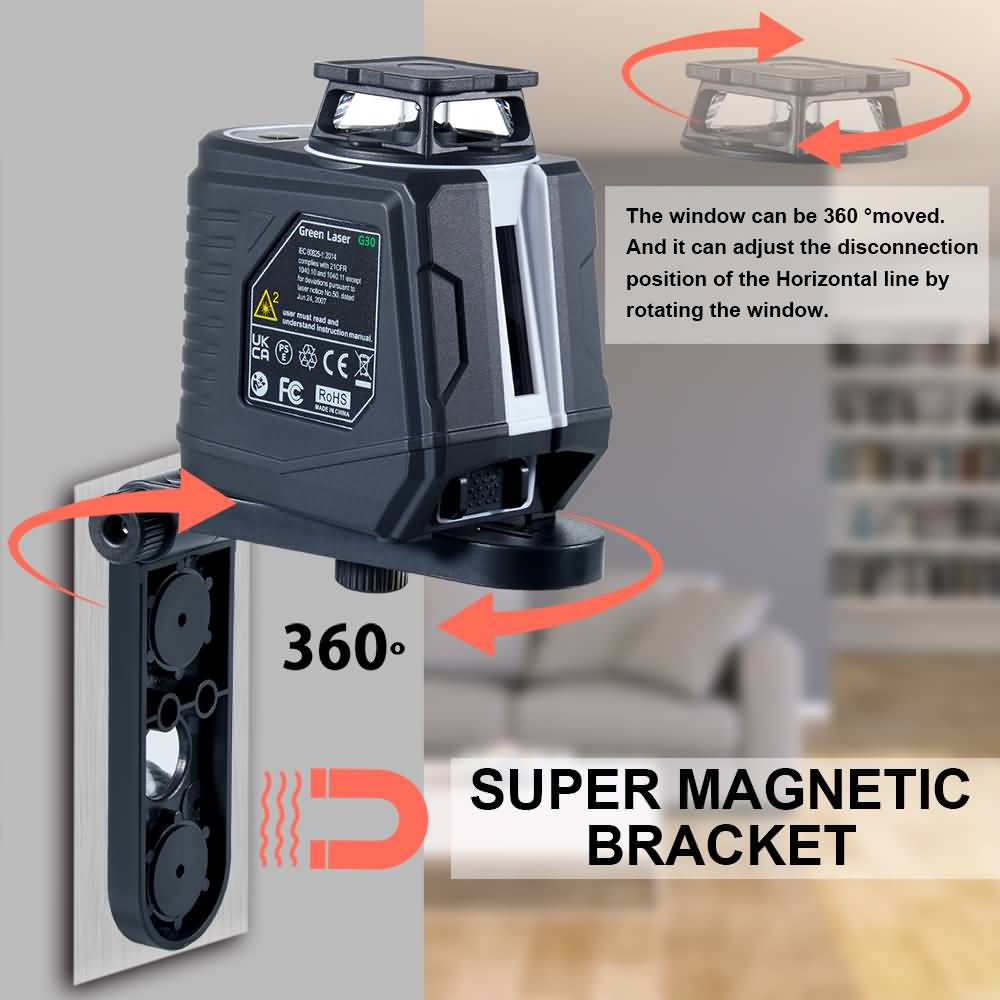

Mount Size: 1/4''
Leveling Type: Gravity pendulum
Working time (with all laser beams on): About 8 hours with 4PCS 1.5V AA batteries
Working range (Radius): 25m/(3-45m with the FIRECORE FD20 laser detector)
Power type: EU plug (send EU plug by default, if you need other plugs, please contact customer service)
Maintenance and after-sales: 1 year warranty

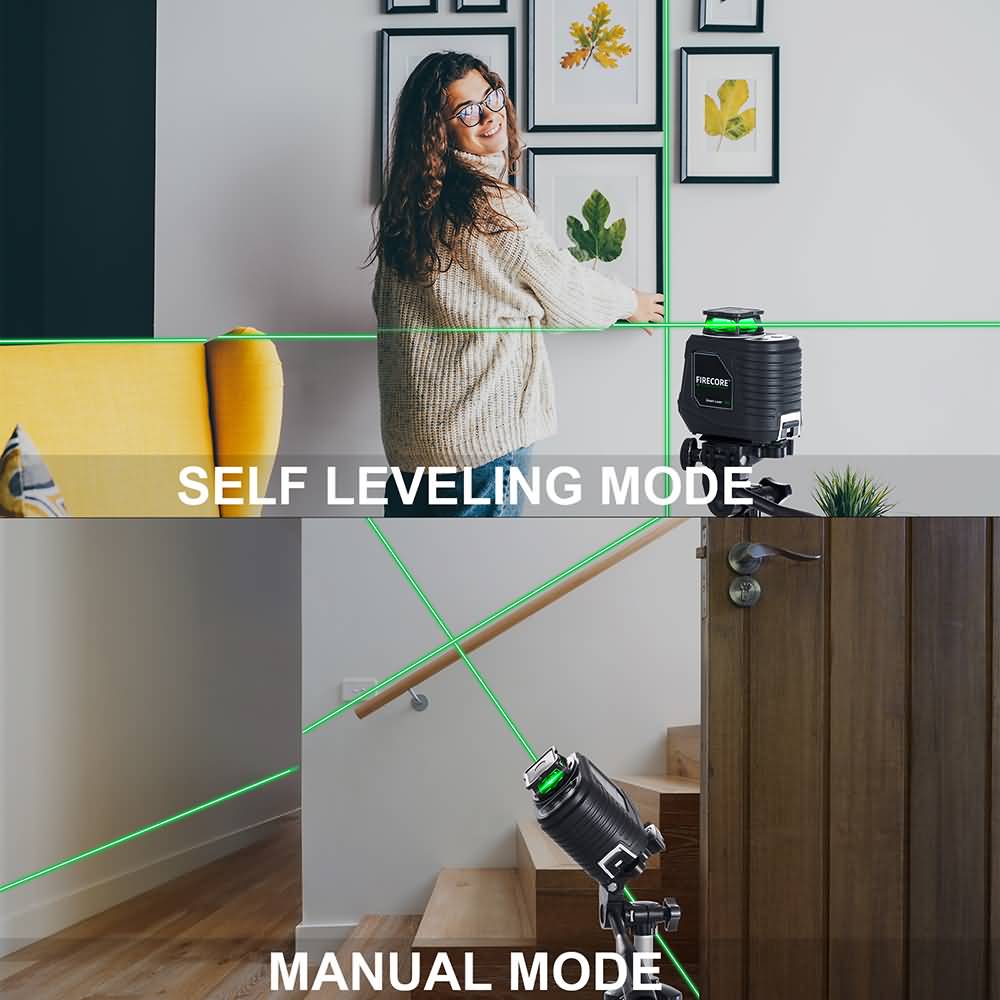

>>Self-leveling function:
On state, the instrument will be self-leveling within 3°, when the instrument is using out of the leveling range, laser lines will keep flashing quickly.
>>Slope mode(Manual mode):
Off state, press and hold the "Manual" button for about 3 seconds, the laser line will be turned on and not flash. Long press "Manual" button to exit this mode.

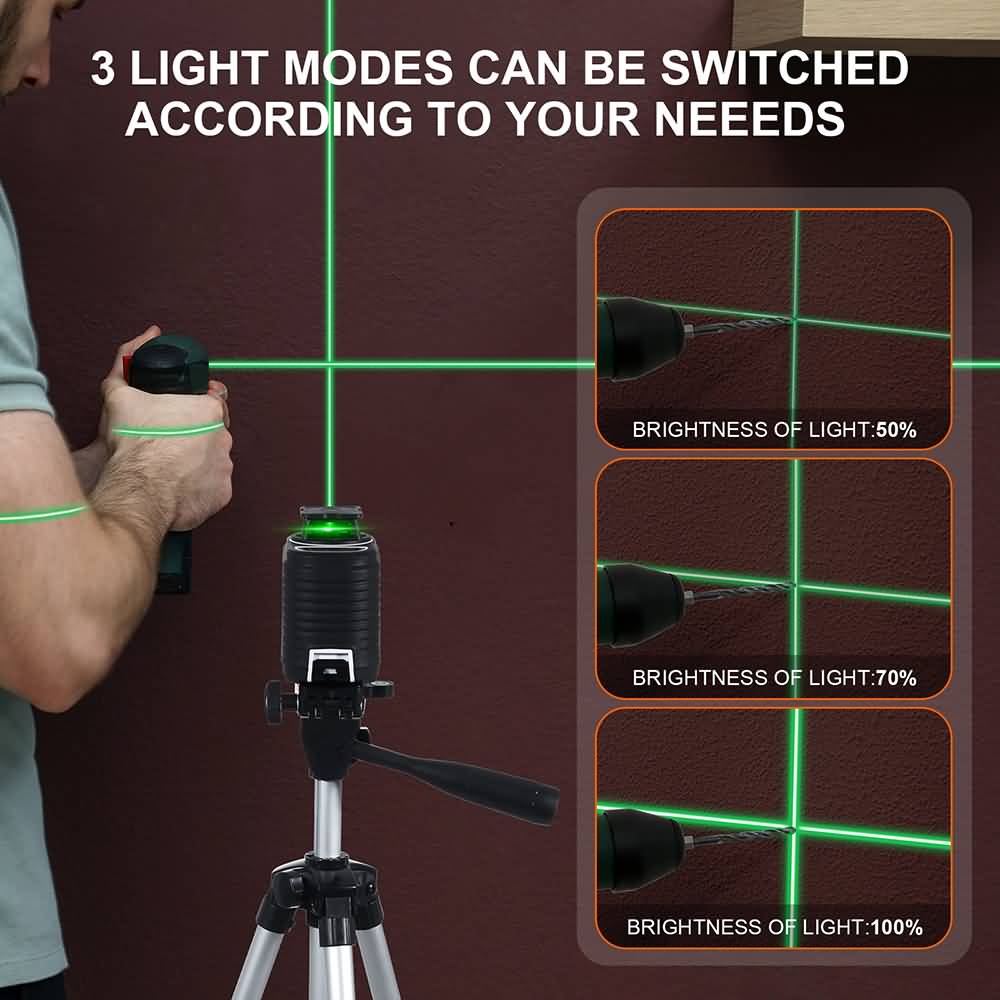

>>Brightness adjustment:
On state, the laser line is the brightest, press the “Manual” button to switch the brightness, High-medium-low.
>>Pulse mode:
How to use the receiver with G30 laser level?
1: First, turn on laser level's pulse mode——On state, press the "Manual" button, he laser line becomes weak, hen the brightness is medium or weak, enter the pulse mode
2: Second, turn on the receiver and search the laser lines. When the receiver detects the laser lines, it will make "Beep" sounds. it can turn off the sound.If you don't use the receiver for more than 5 minutes, it will shut down automatically
