Description

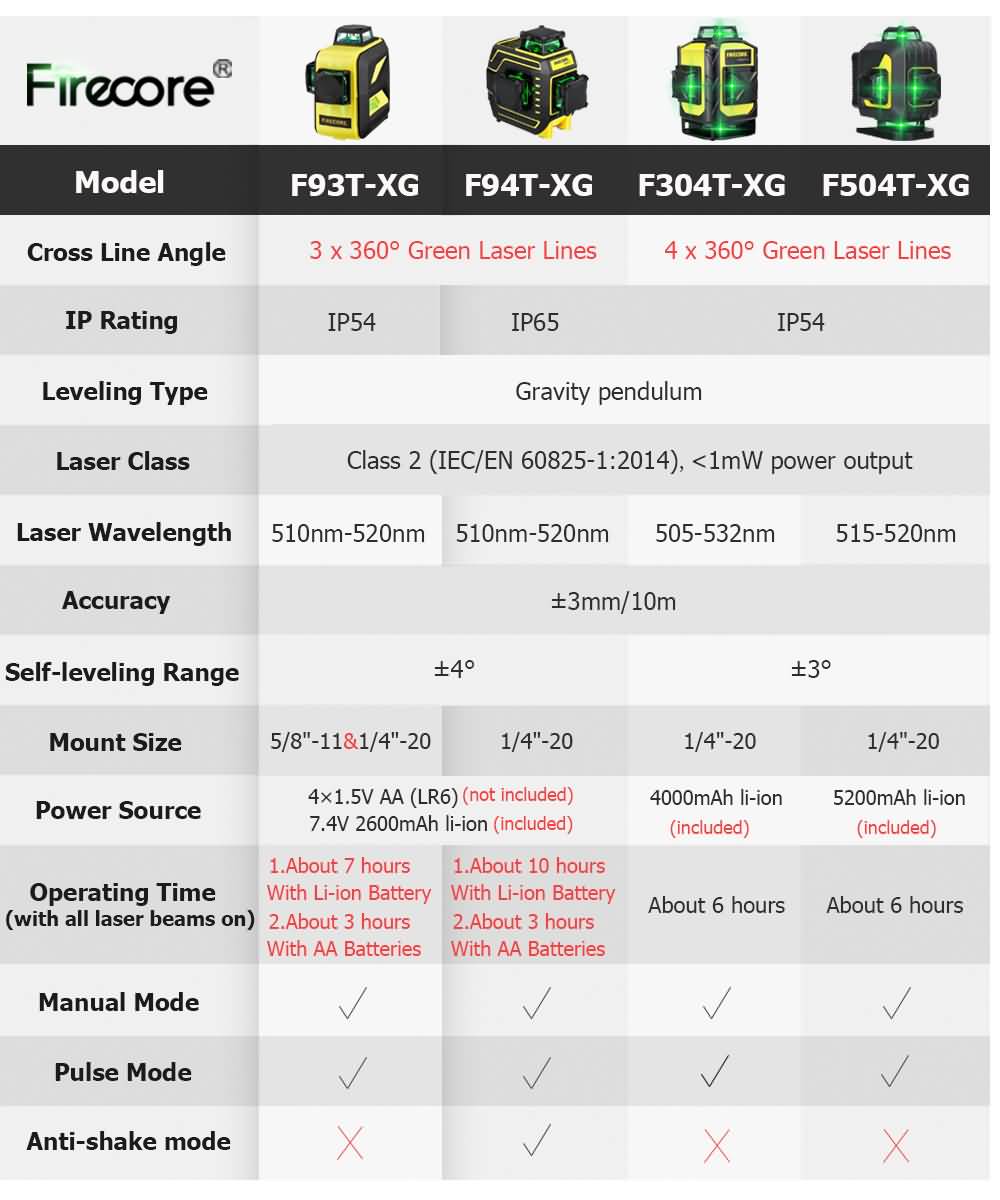

>>Parameter:
Model: F504T-XG

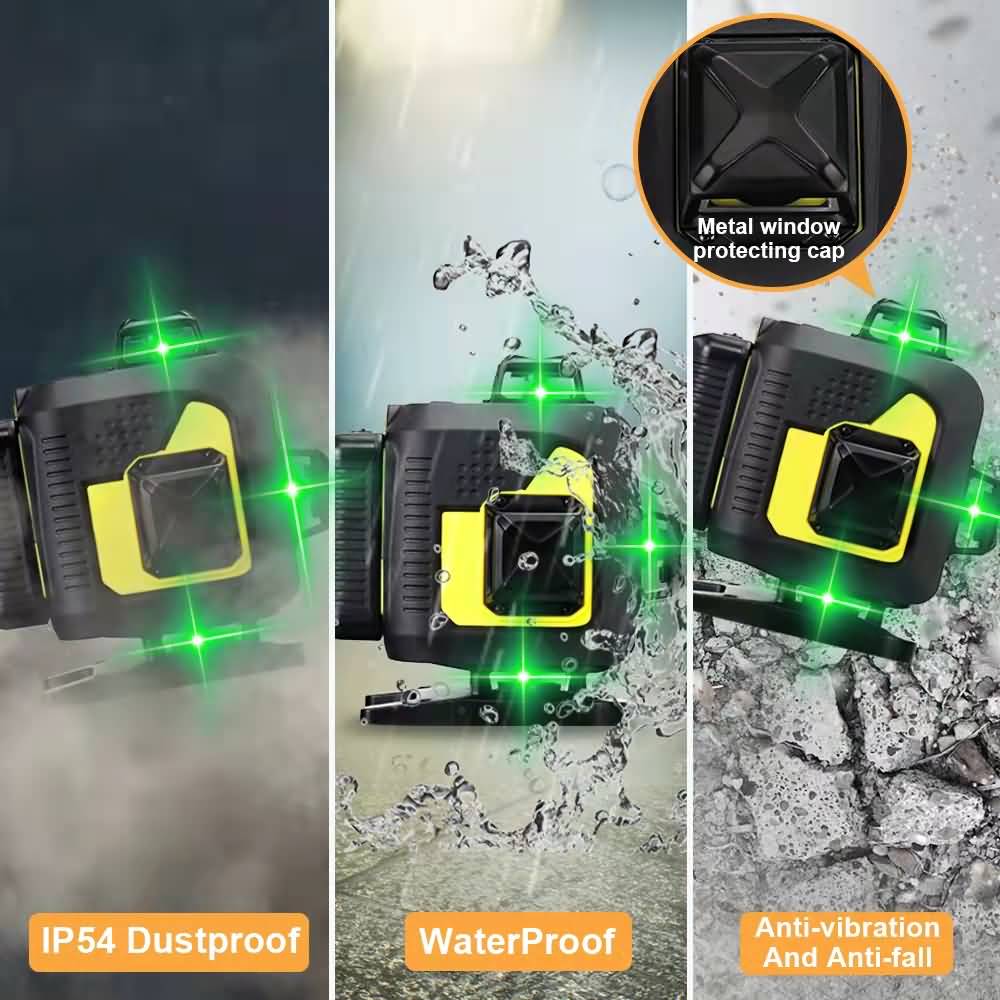

IP Rating: IP54
Laser class: Class 2 (IEC/EN 60825-1:2014), <1mW
Laser Wavelength: Osram, 515-520nm
Horizontal/Vertical Accuracy: ±3mm/10m
Self-leveling Range: ±3°

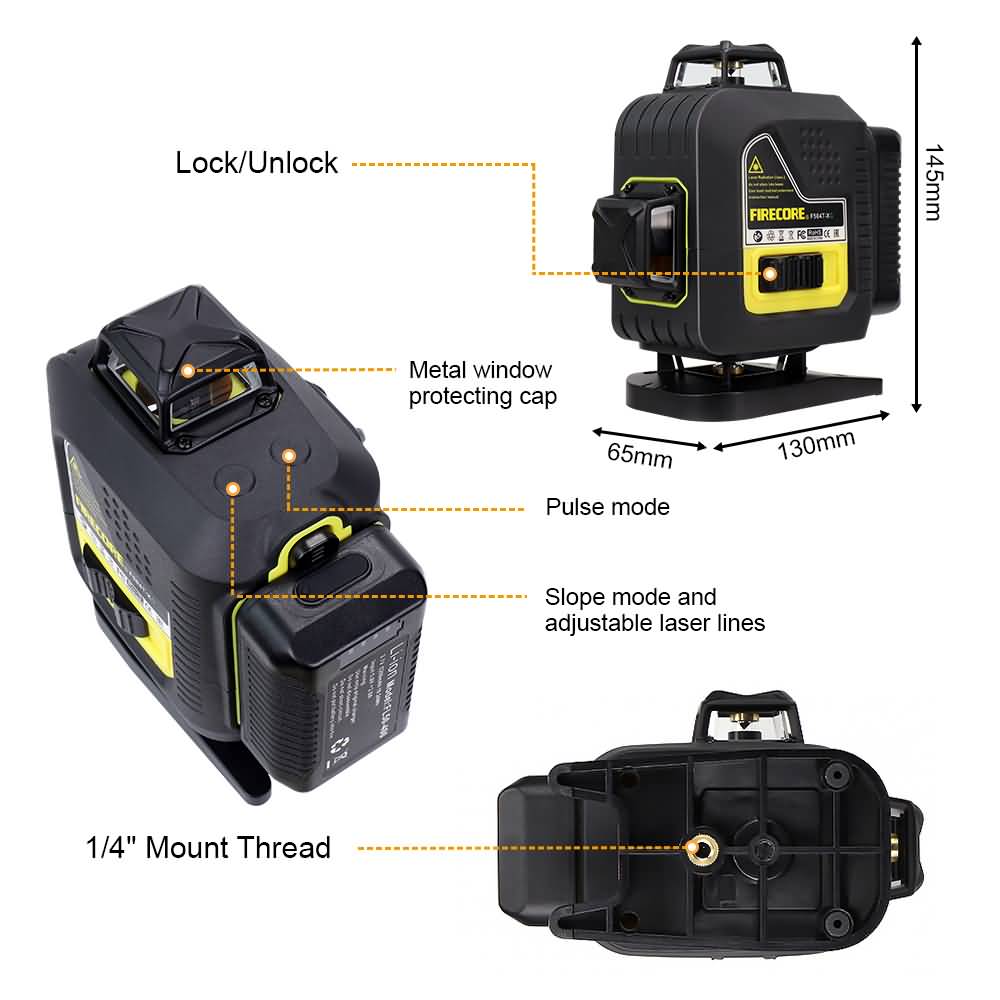

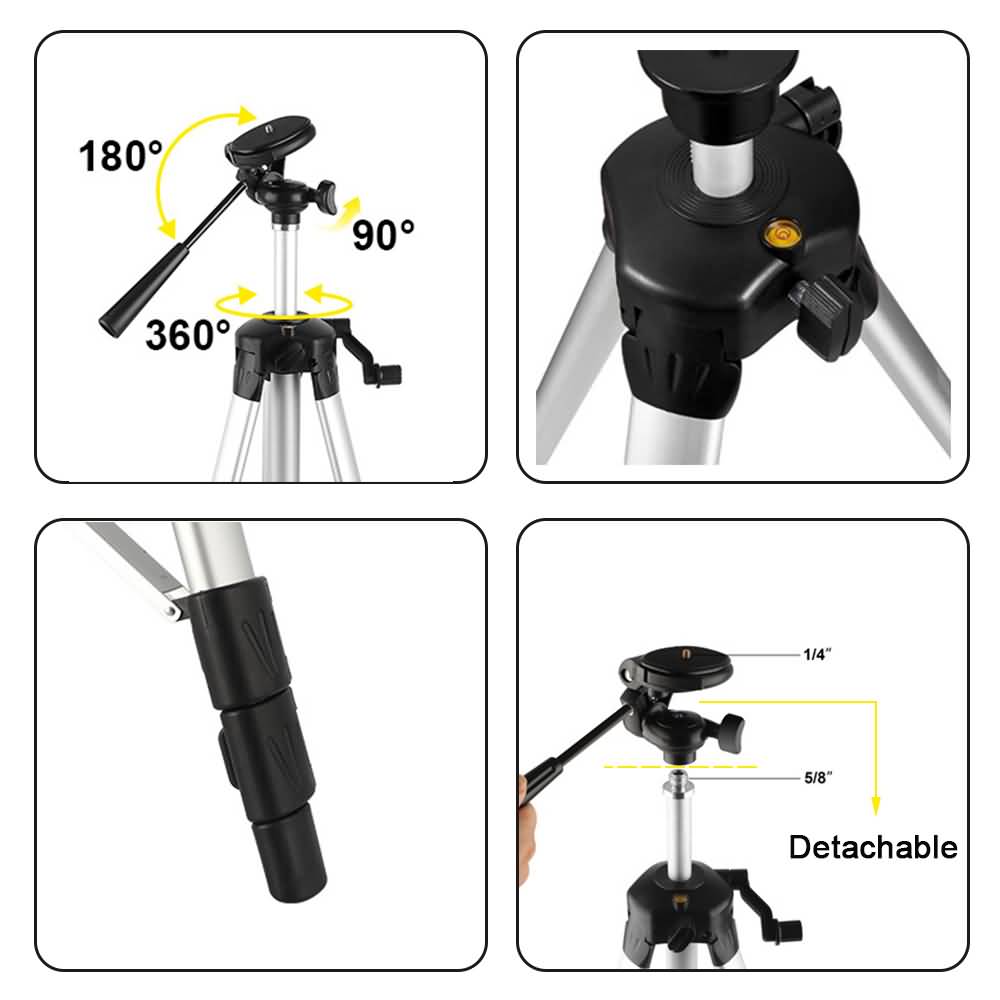

Mount Size: 1/4''
Leveling Type: Gravity pendulum
Working time (with all laser beams on): About 6-8 hours
Working range (Radius): 23m/(up to 50m with the FIRECORE FD20 laser detector)

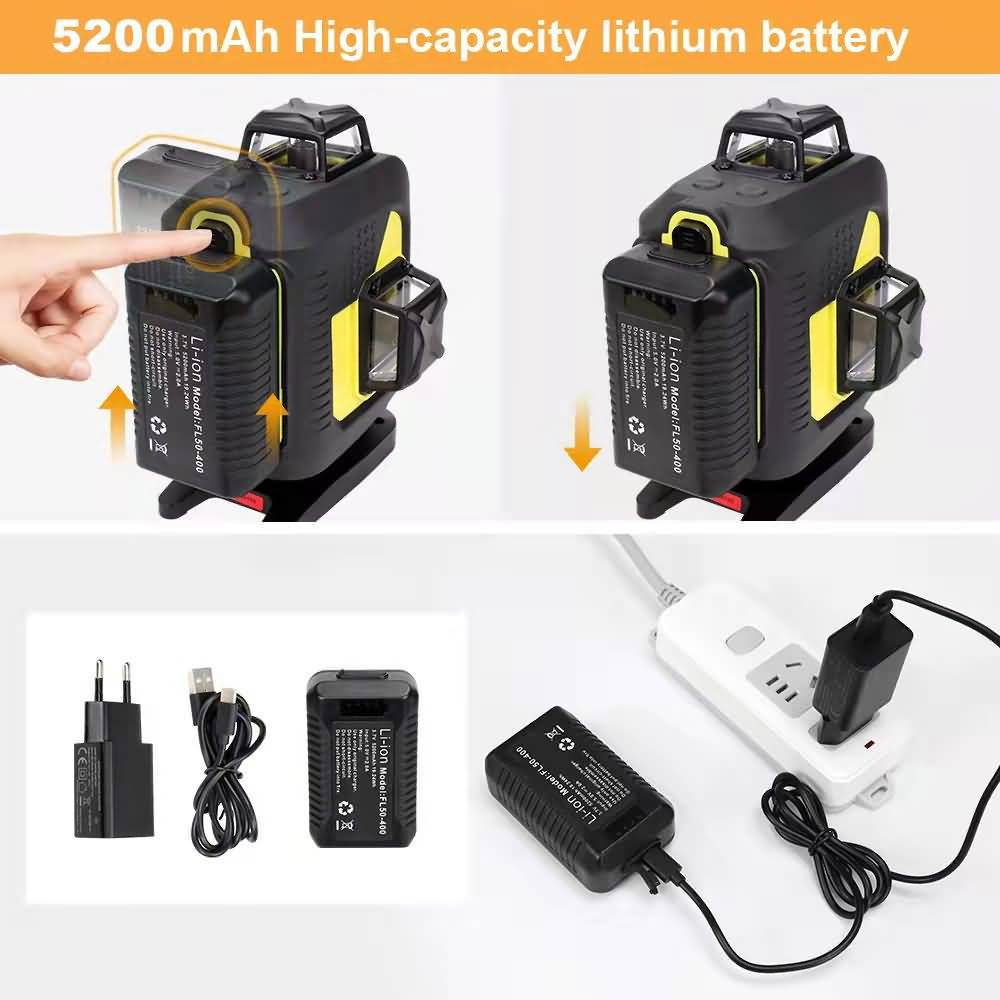

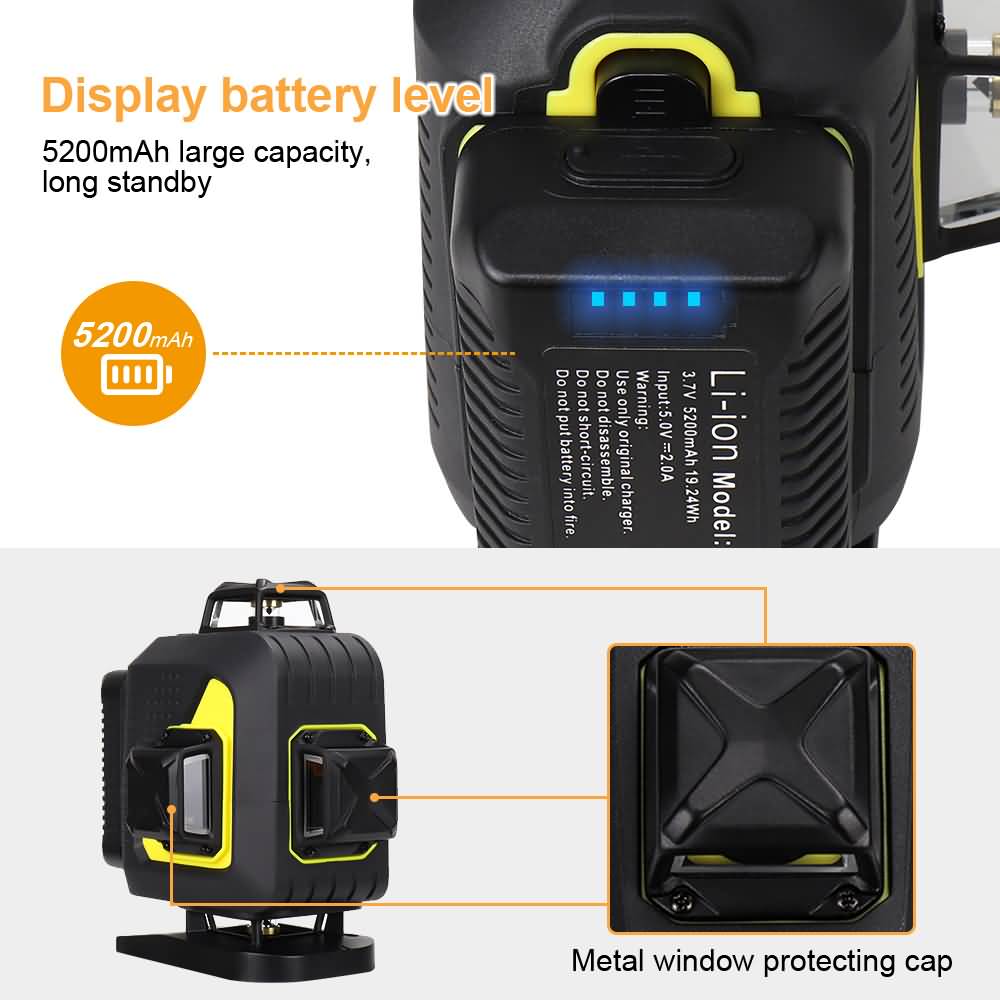

Power supply: Rechargeable 5200mAh lithium battery
Power type: EU plug (send EU plug by default, if you need other plugs, please contact customer service)
Maintenance and after-sales: 1 year warranty

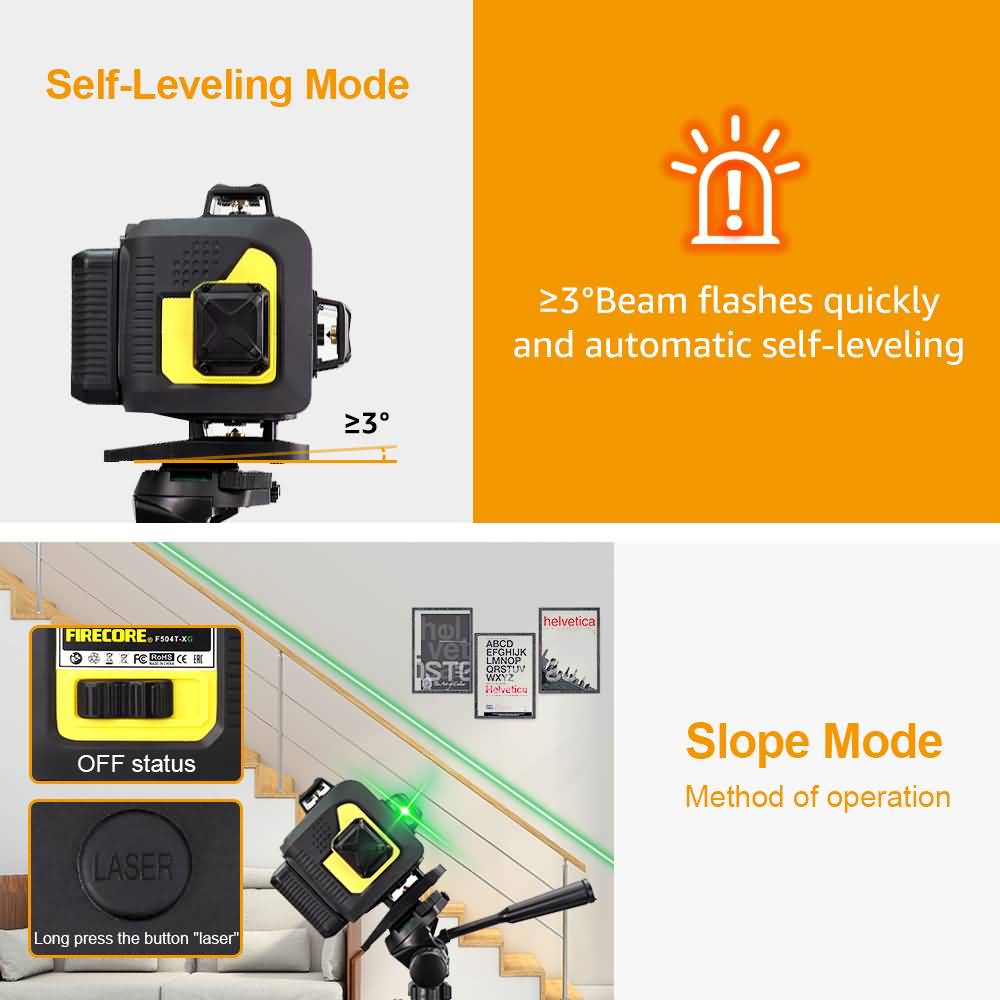

>>Self-leveling function:
On state, the instrument will be self-leveling within 3°, when the instrument is using out of the leveling range, laser lines will keep flashing quickly.
>>Slope mode(Manual mode):
Off state, press and hold the "LASER" button for about 3 seconds, the laser line will be turned on, and the laser line s inclined, when the instrument tilt angle exceeds 3º, the laser line flashes slowly and can be operated at the angle you choose.

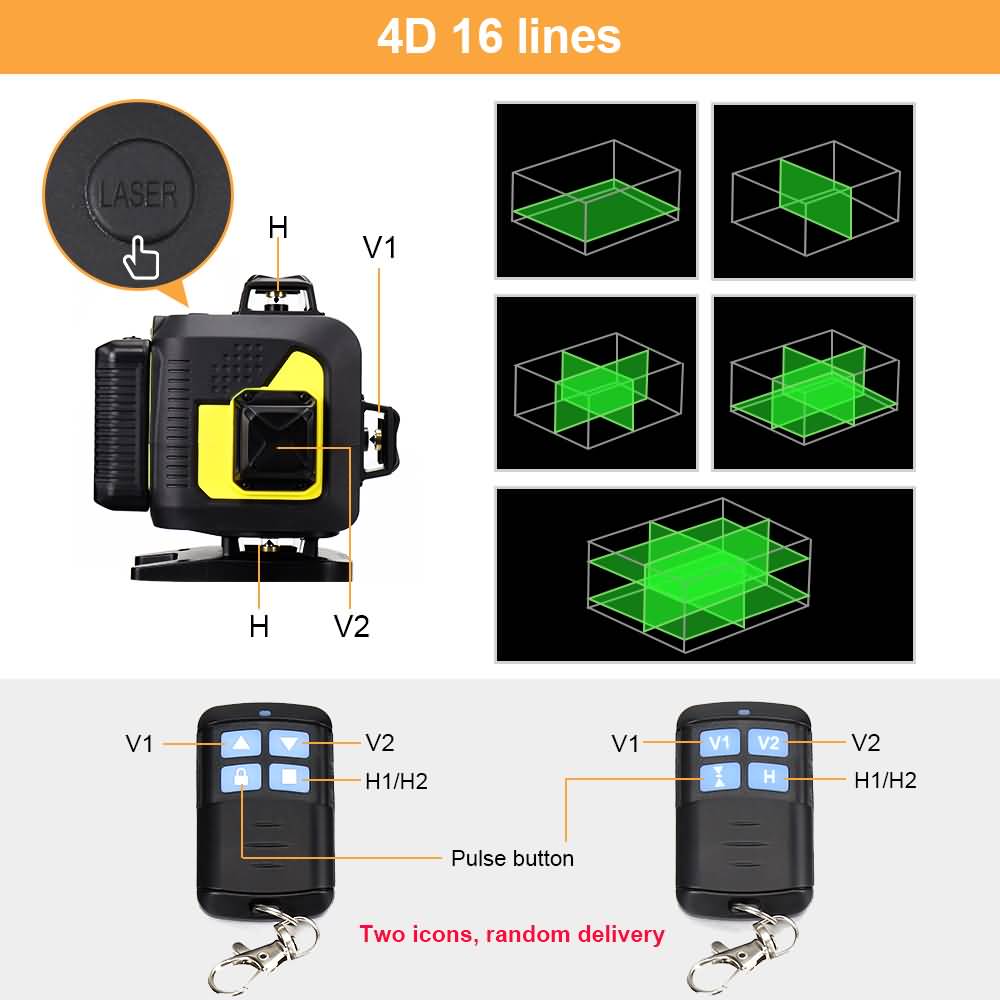

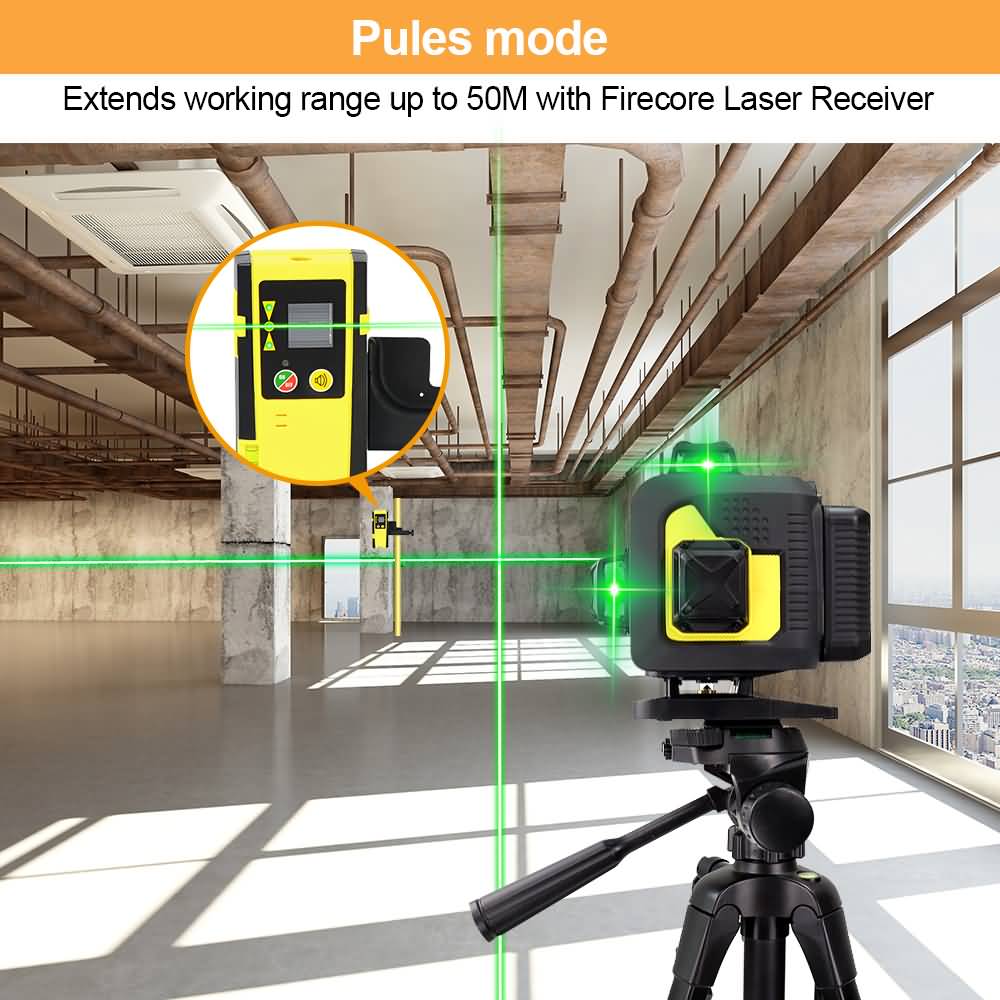

>>Pulse mode:

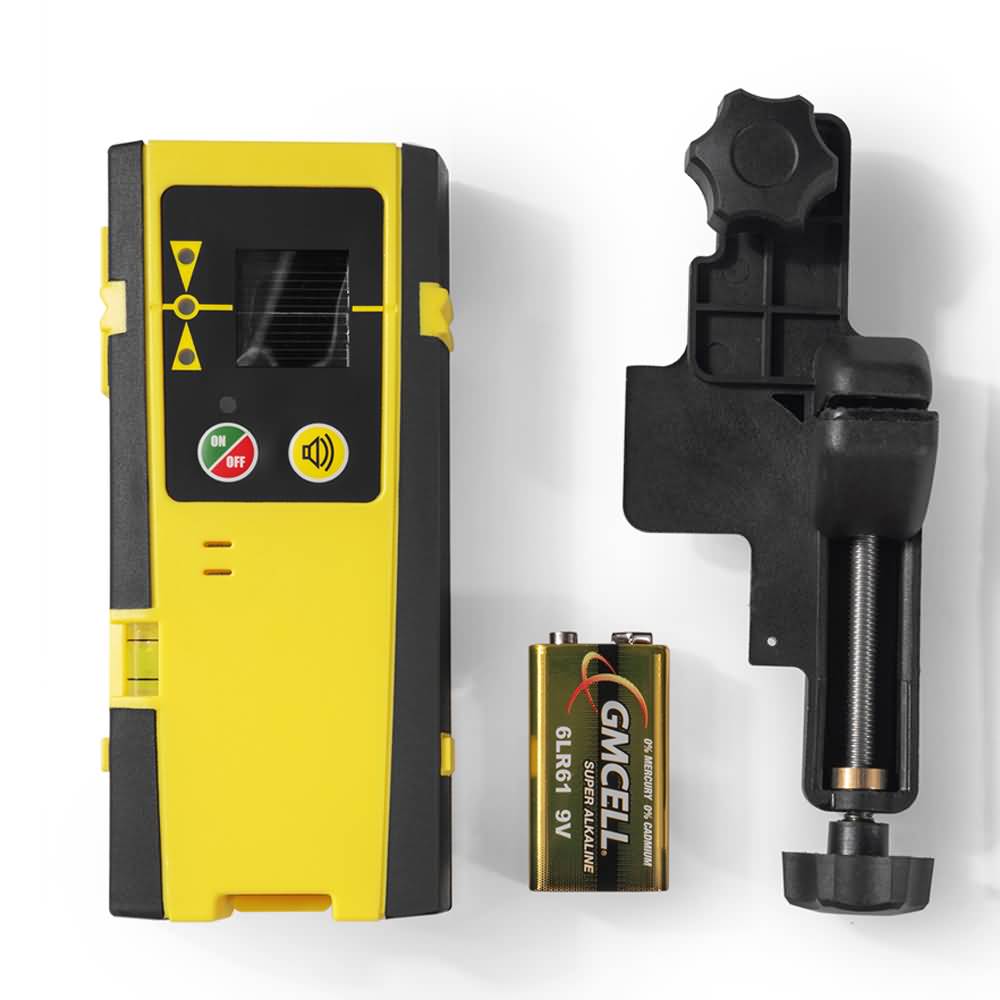

How to use the receiver with F504T-XG laser level?
1: First, turn on laser level's pulse mode——Press the Double arrow button, the laser line flashes 2-3 times and then enters the pulse mode.
2: Second, turn on the receiver and search the laser lines.When the receiver detects the laser lines, it will make "Beep" sounds. it can turn off the sound.If you don't use the receiver for more than 5 minutes, it will shut down automatically

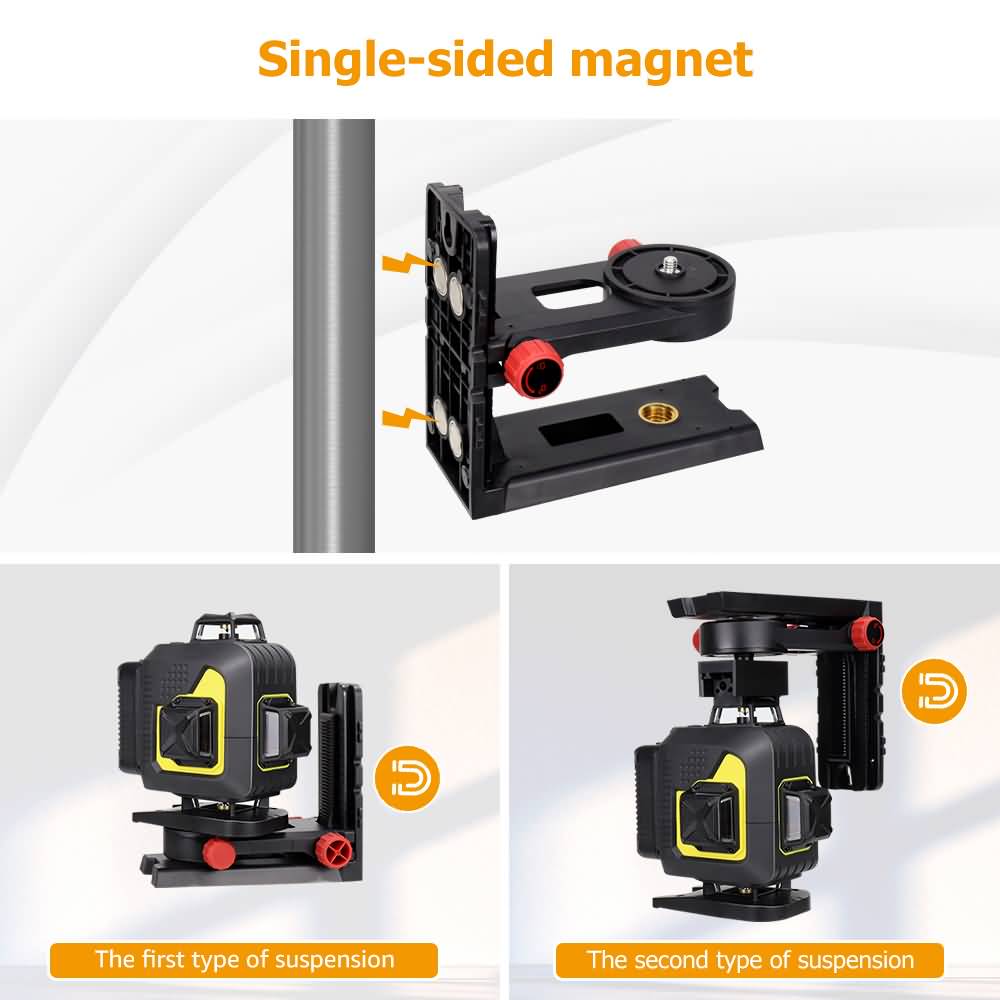

Note：The brackets with four magnets and six magnets at the rear are sent randomly, and it is impossible to specify which type to send.
